Features:-

>Premium Dual DAC Chipset featuring 2*ES9038Q2M DAC chips.

>High-Performance XMOS XU208 USB Signal Receiver.

>Qualcomm CSR8675 Bluetooth Chip.

>Hi-Res Bluetooth V5.0 Connectivity.

>Support Hi-res Wireless codecs such as LDAC, aptX HD, aptX LL, and more.

>Two-level Gain switch ( 6dB/ 15dB).

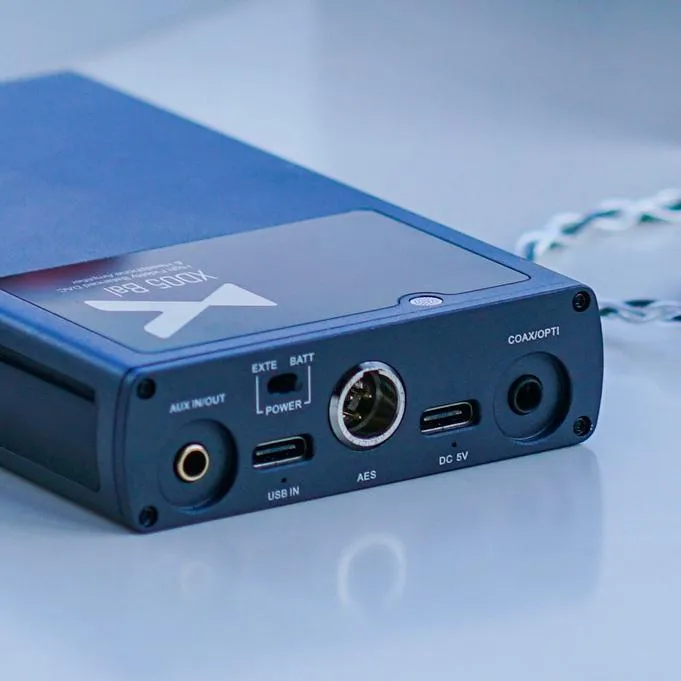

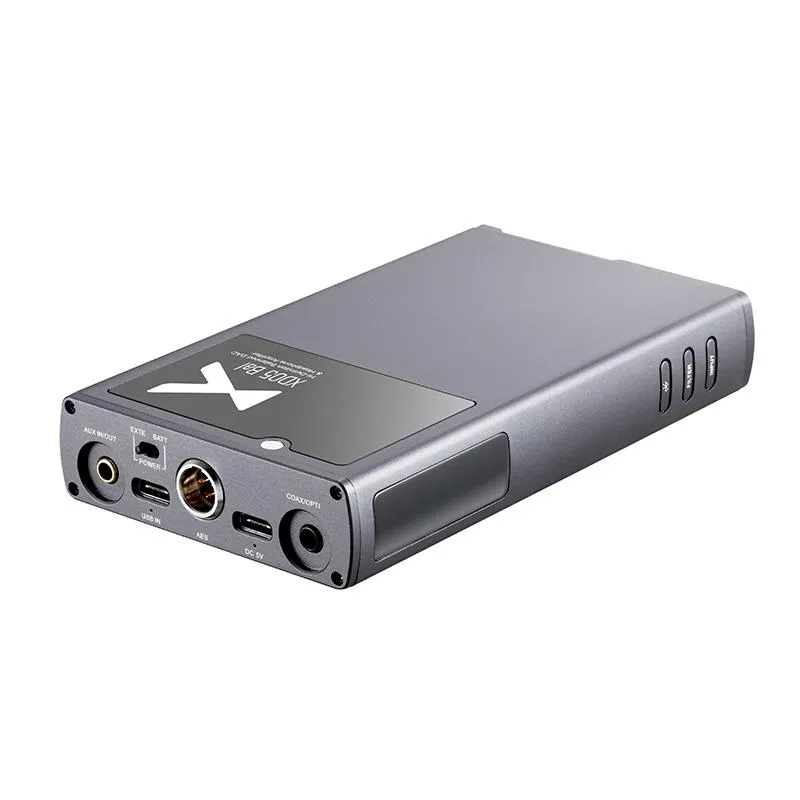

>AES/Co-axial/Optical input options.

>USB Type-C input support.

>Aux Input.

>6.35mm Single-ended headphone output.

>4.4mm Balanced headphone output.

Technical Specifications:-

>Battery: 3.8V/5000mAh.

>Battery Life:  USB IN: up to 9 hours, SPDIF IN: up to 15 hours, Aux IN: up to 24 hours.

>0.91” OLED Display.

>Supports Android/iOS devices, Windows/MAC systems.

>Frequency Response Range(USB/SPDIF): 20Hz-20kHz.

>Frequency Response Range(AMP): 10Hz-60kHz.

>Sampling Rate Support(USB): PCM up to 32-Bit/768kHz, DSD up to DSD512 natively.

>Sampling Rate Support(AES/Optical/Coaxial): PCM up to 24-Bit/192kHz, DSD up to DSD64.

>Output Power(6.35mm): up to 1000mW(32Ω).

>THD N(6.35mm): 0.0015%@1kHz.

>SNR(6.35mm): 115dB.

>Crosstalk(6.35mm): ≥72dB.

>Output Power(4.4mm): up to 1000mW(32Ω).

>THD N(4.4mm): 0.0008%@1kHz.

>SNR(4.4mm): 117dB.

>Crosstalk(4.4mm): ≥100dB.

>Output Level(Aux): 2.0Vrms.

>Size: 13cmx7.5cmx2.2cm.

>Weight: 0.29Kg.

Powerful Dual DAC Chipset:-

xDuoo has equipped the XD-05 Balanced with a premium Dual DAC chipset featuring 2xES9038Q2M DAC chips. It provides outstanding hi-res audio signal decoding with super-clean background and ultra-low distortion. The DAC chip is paired with a premium XMOS XU208 USB signal receiver chip providing hi-res signal decoding up to 32-Bit/768kHz and DSD512 natively.

Seamless Wireless Connectivity:-

Featuring the flagship CSR8675 Bluetooth signal chip from Qualcomm, the xDuoo XD-05 Balanced provides a seamless wireless Bluetooth V5.0 connectivity with hi-res codecs support such as LDAC, AptX HD, AptX LL, AptX, and many more.

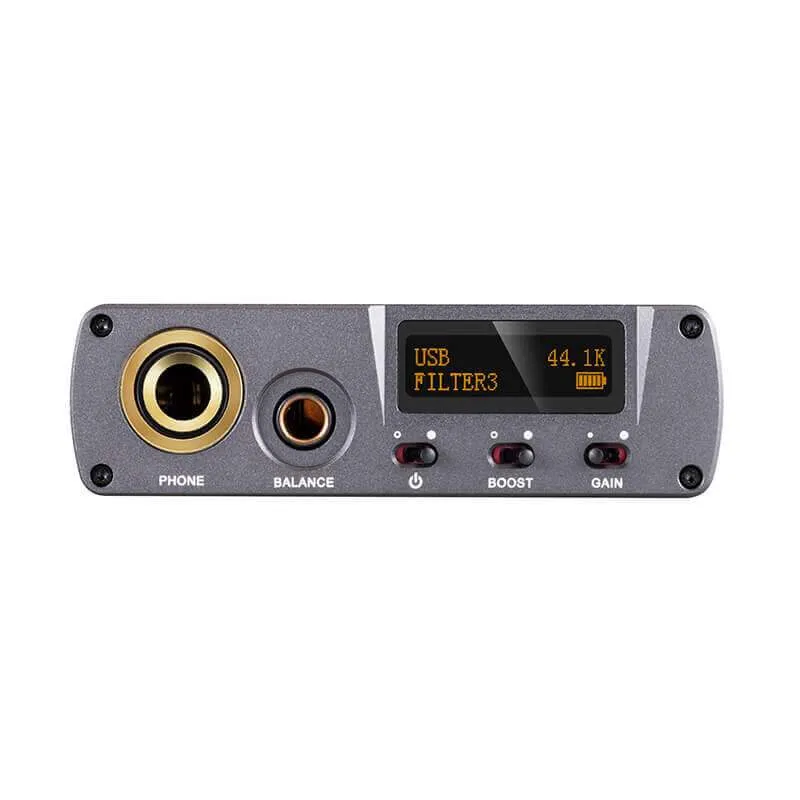

Powerful Balanced Output:-

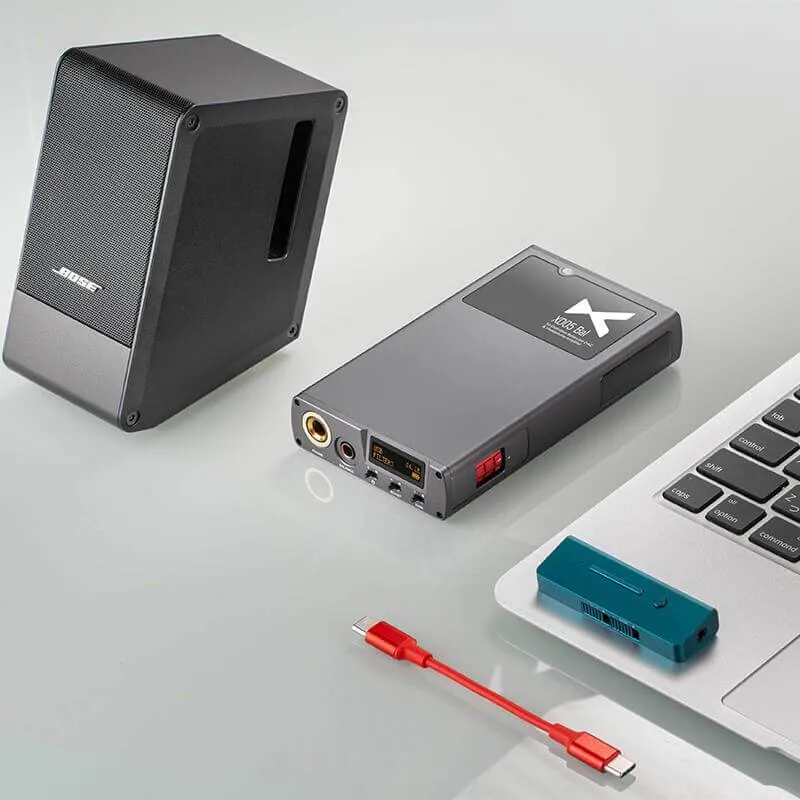

xDuoo XD05 Bal as the name suggests features a fully balanced 4.4mm headphone output port. The device is equipped with a premium OP BUF amplifier circuit providing a whooping 1000mW power at 32Ω of load. This much power is more than enough to power your power-hungry headphones and makes them shine with all their glory. With the balanced headphone output, the S/N and dynamics are greatly improved. Along with this balanced headphone out port, the XD-05 Bal also features a single-ended 6.35mm headphone output.

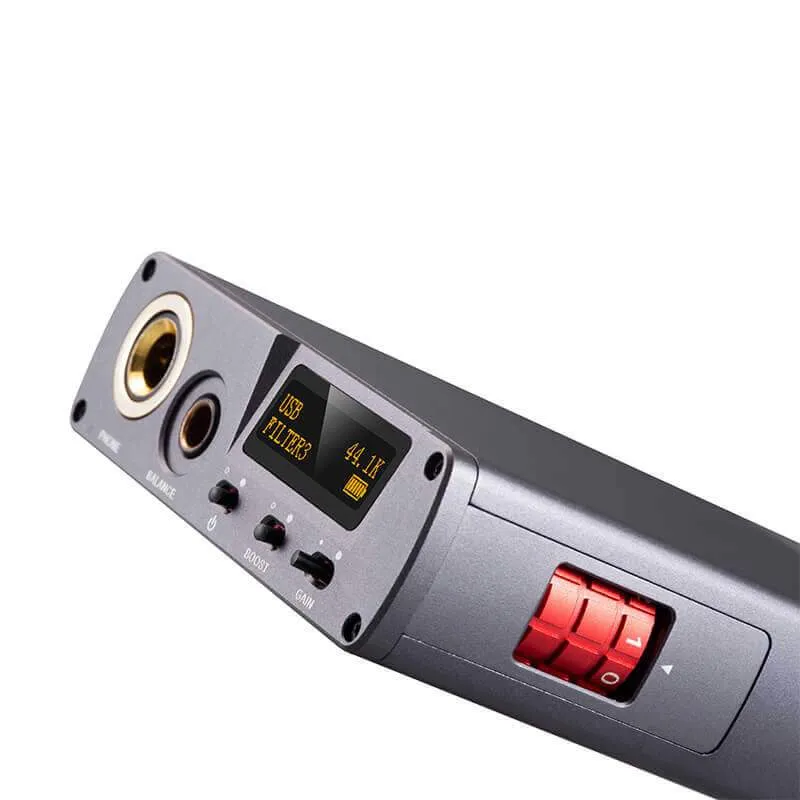

OLED Display, Gain Switch, & Other Features:-

The XD05 Bal houses plenty of more features such as OLED display, Digital Decoding Filters, Boost switch, two-way gain( 6/ 15dB), premium build quality, and much more.
