Product Details
+
Features:

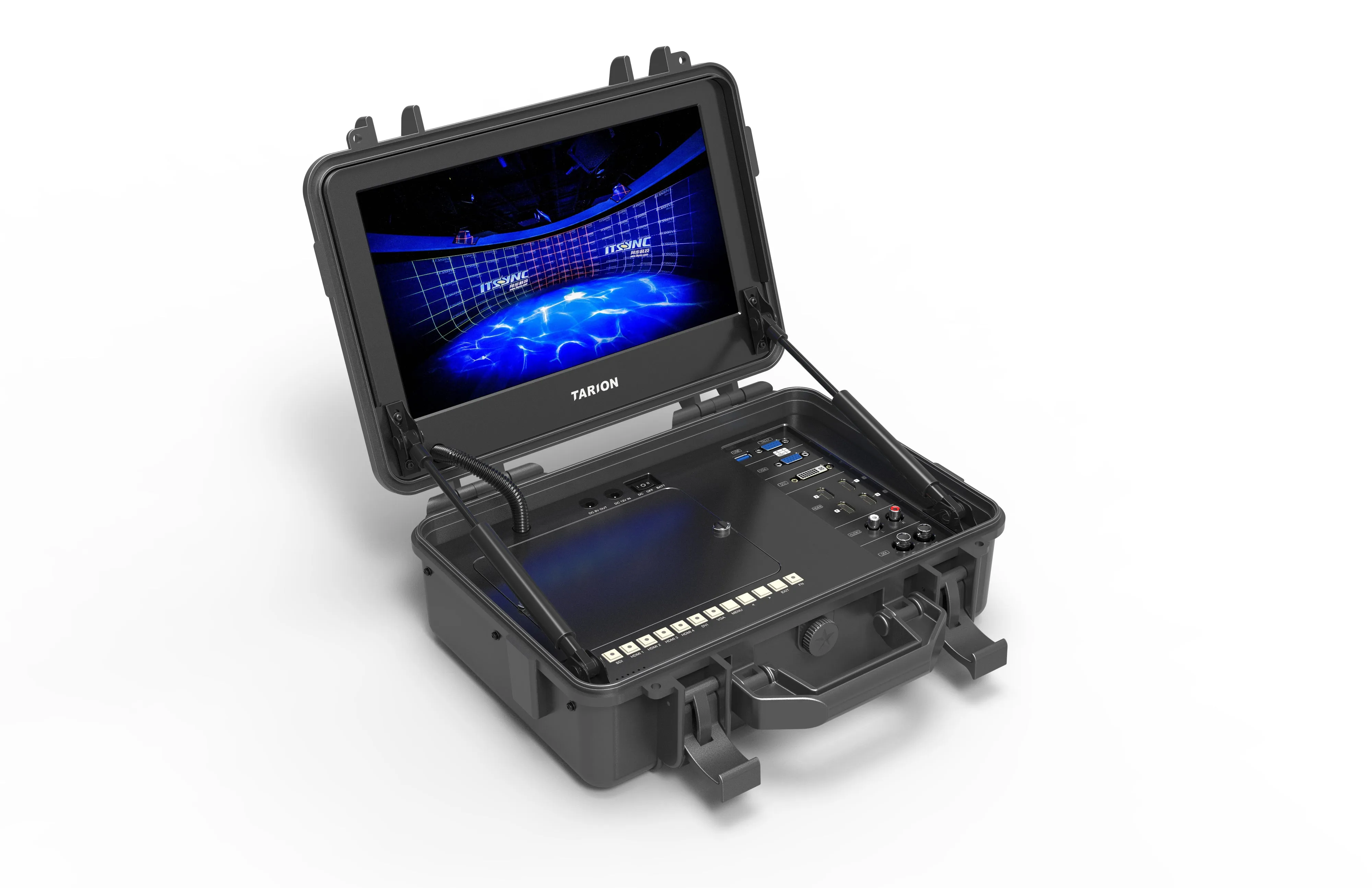

- Excellent Color Space: Creatively integrated the 3840x2160 native resolution into a 12.5 inch 8 bit LCD panel, which is far beyond from retina identification. Cover 97% NTSC color space, accurately reflect the original colors of an A level screen.

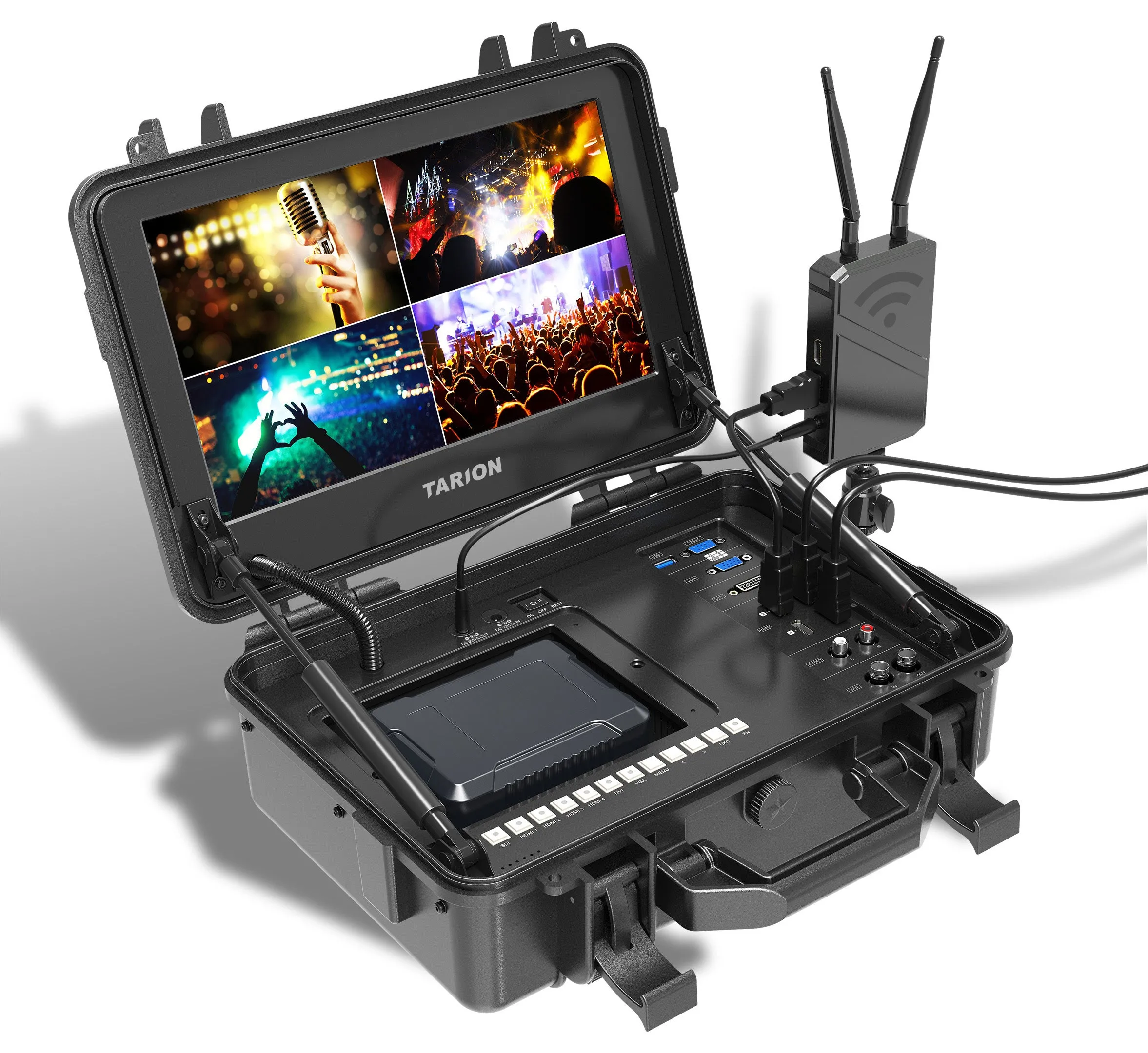

- Quad Views Display: It supports quad views split from different input signals simultaneously, such as 3G-SDI, HDMI, and VGA. Also supports Picture-in-Picture function.
- 4KHDMI&3G-SDI: 4K HDMI supports up to 4096x2160 60p and 38402160 60p; SDI supports 3G-SDI signal. 3G-SDI signal can loop output to the other monitor or device when 3G-SDI signal input to monitor.
- Support External Wireless Transmitter: Supports SDI / HDMI wireless transmitter which can transmit 1080p SDI / 4K HDMI signals in real-time. When in use, the module can be mounted on the side brackets (compatible with 1/4 inch slots) of the case.
- 3DLUT: Wider color gamut range to make precise color reproduction of Rec.709 color space with built-in 3D-LUT, featuring 3 user logs. Supports loading the .cube file via USB flash disk.

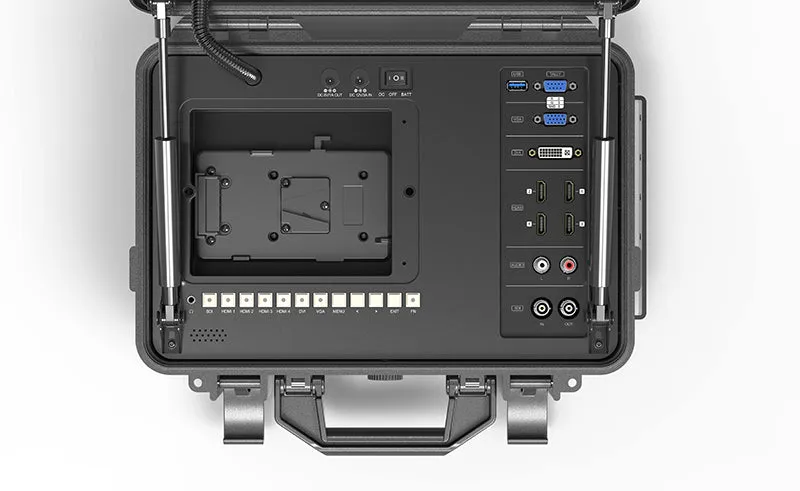

- Outdoor Power Supply: The V-mount battery plate is embedded in the suitcase and can be powered by a 14.8V lithium V-mount battery. Provides extra power when shooting outdoors in the field.

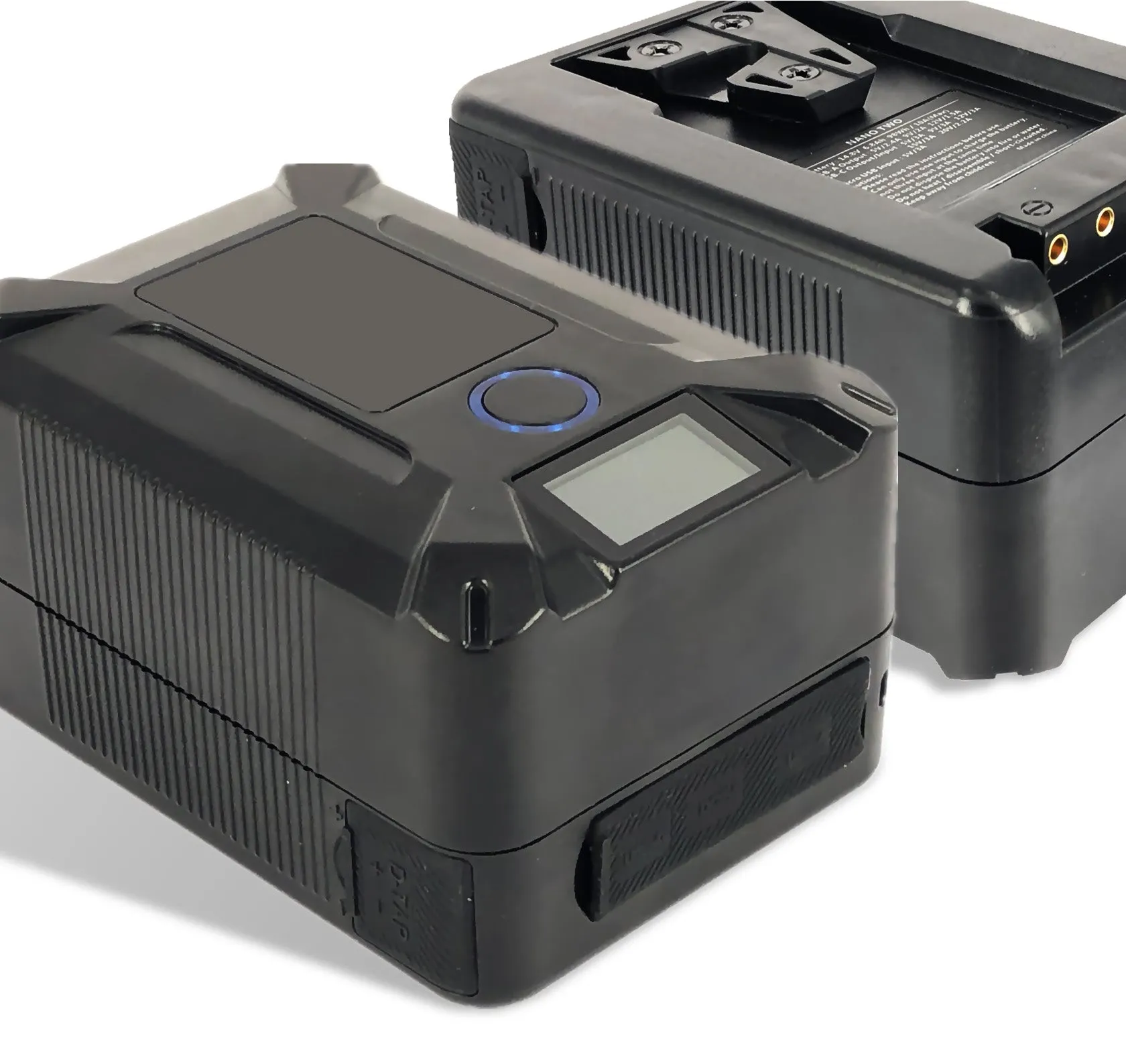

- V-mount Battery: Compatible with mini V-mount battery brands on the market. A 135Wh battery will keep the monitor working for 7 - 8 hours. The length and width of the battery should not exceed 120mmx91 mm

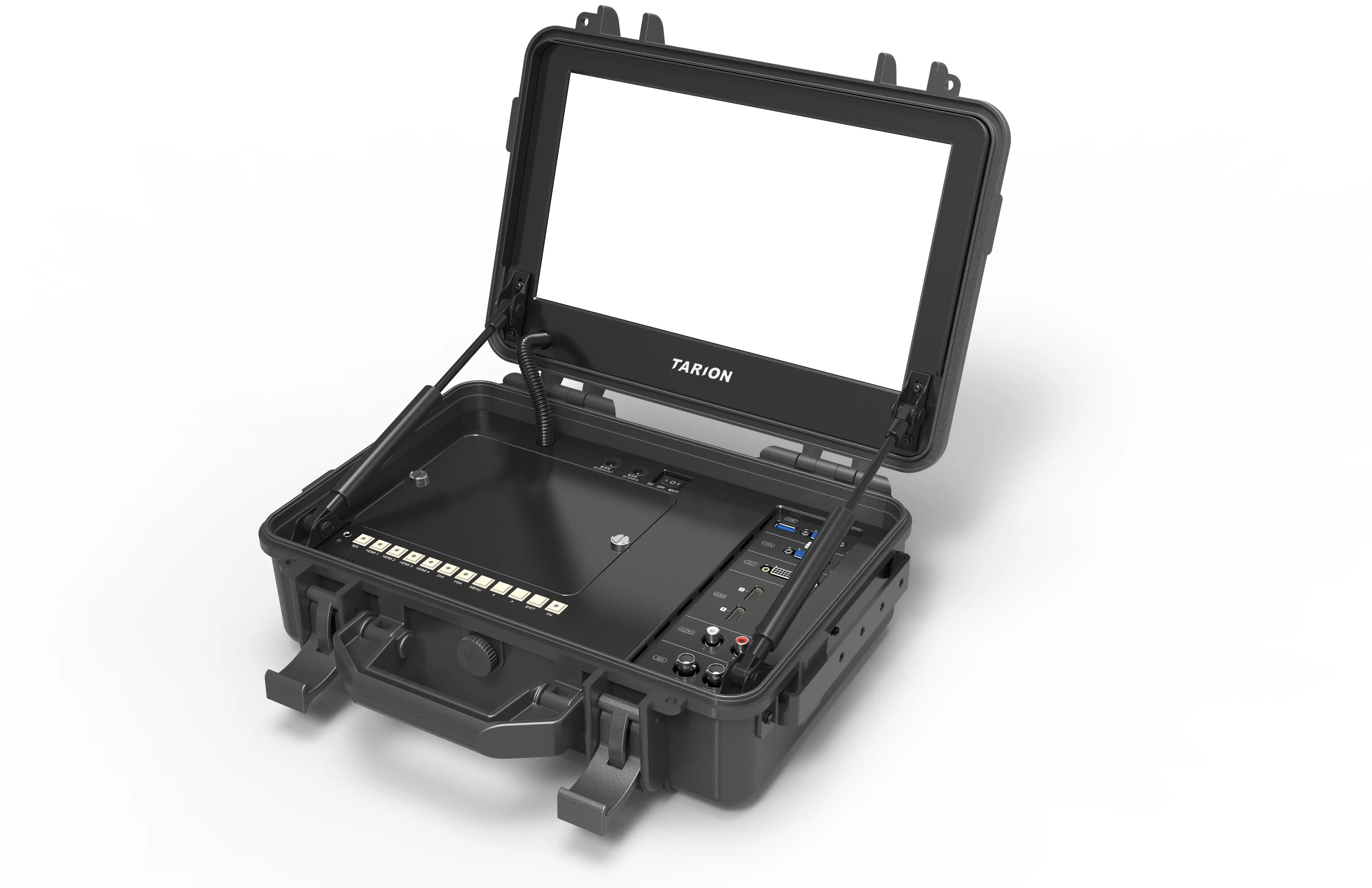

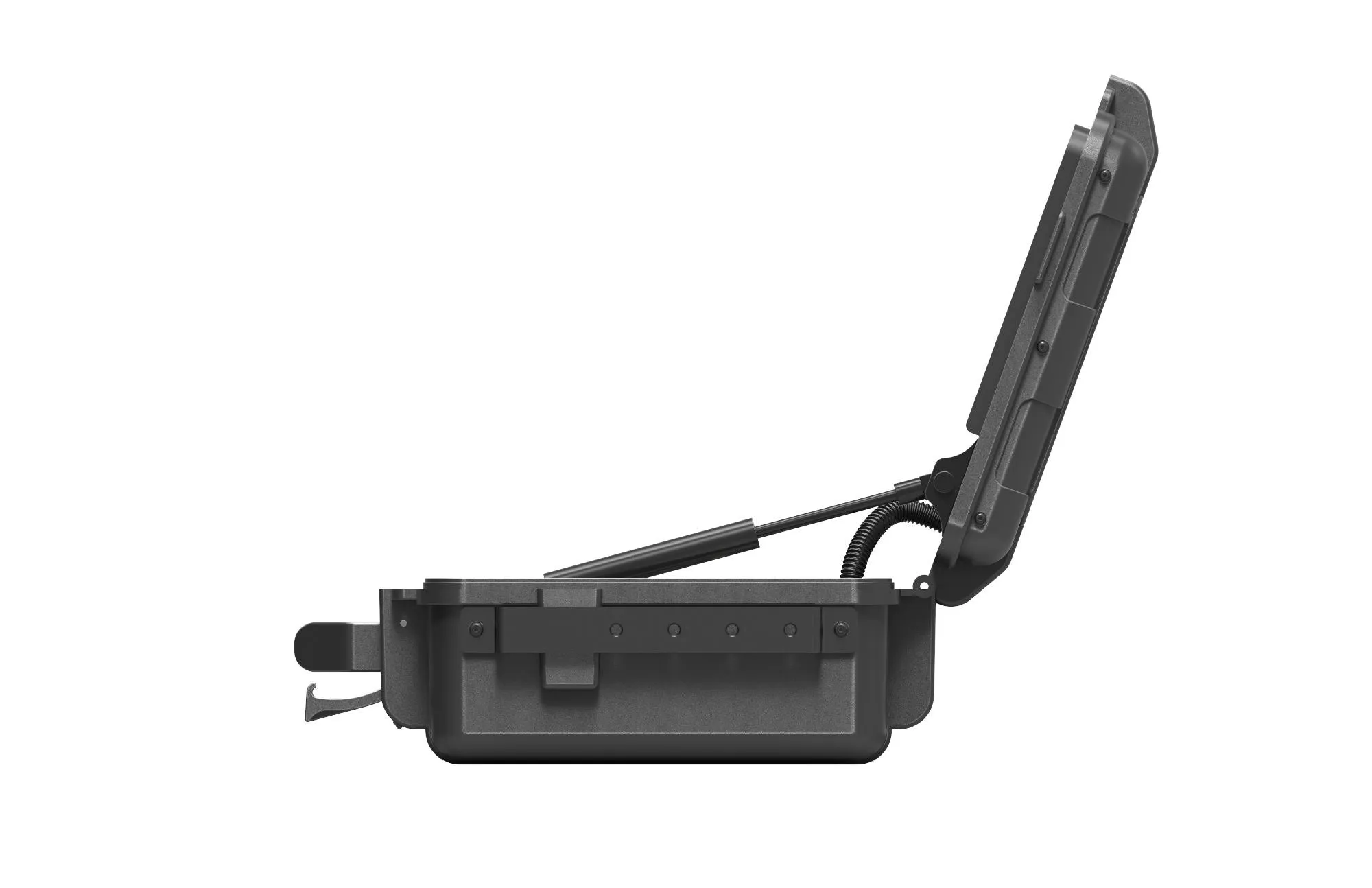

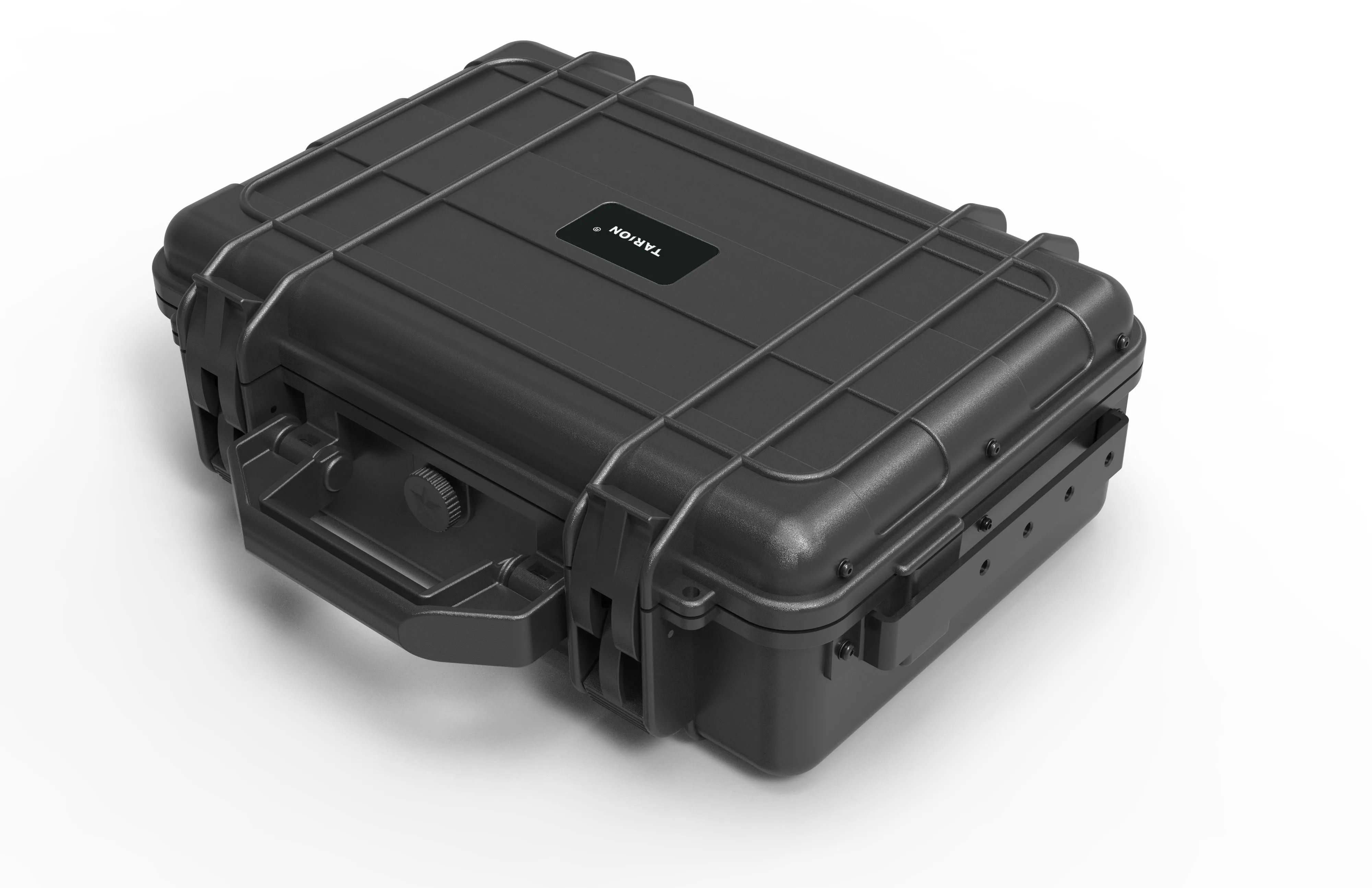

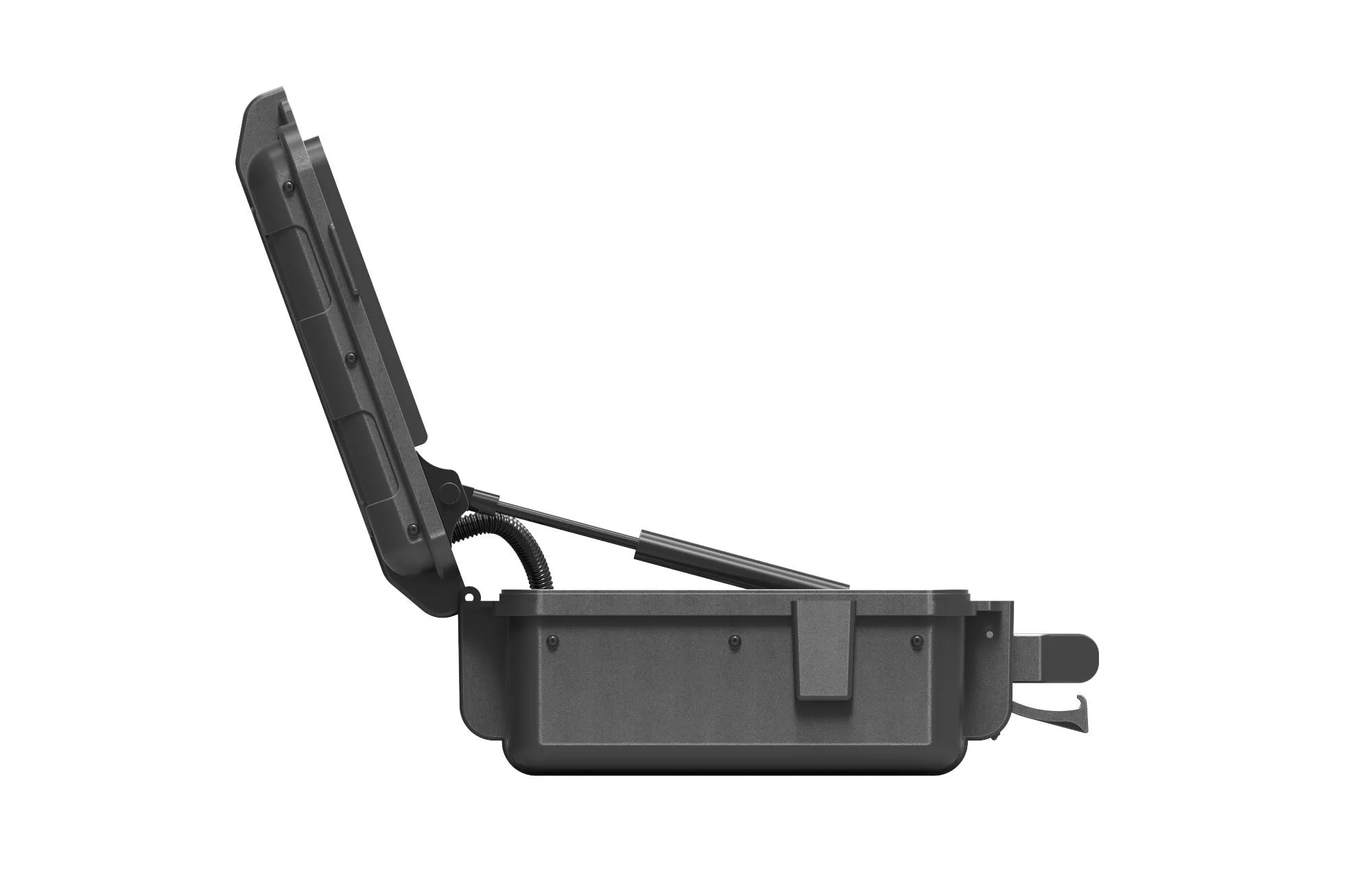

- Portable Flight Case: Military-industrial Level! Integrated PPS high-strength material, featuring dustproof, waterproof, high-temperature resistance, impact resistance, and corrosion resistance. The lightweight design makes outdoor photography easy and convenient. It is sized to meet boarding requirements that can be taken into the cabin.
Specification:
DISPLAY | Panel | 12.5‘’LCD |
Physical Resolution | 3840x2160 | |
Aspect Ratio | 16:09 | |
Brightness | 400cd/m2 | |
Contrast | 1500:01:00 | |
Viewing Angle | 170°/170°(HA/) | |
3G-SDI | 3G-SDI (support up to 1080p 60Hz) | |
HDMI | HDMI 2.0 x2 (support up to 4K 60Hz) | |
HDMI 1.4b x2 (support up to 4K 30Hz) | ||
INPUT | DVI | 1 |
AVG | 1 | |
Audio | 2(L/R) | |
Tally | 1 | |
USB | 1 | |
OUTPUT | 3G-SDI | 3G-SDI (support up to 1080p 60Hz) |
AUDIO | Speaker | 1 |
Ear Jack | 1 | |
POWER | Input Voltage | DC 10-24V |
Power Consumption | ≤23W | |
Battery Plate | V-mount battery plate | |
Power Output | DC 8V | |
ENVIRONMENT | Operating Temperature | 0℃-50℃ |
Storage Temperature | -10℃-60℃ | |
DIMENSION | Dimension(LWD) | 356.8mm x 309.8mm x 122.1mm |
Weight | 4.35kg (include accessories) |
