Product Details
＋
-

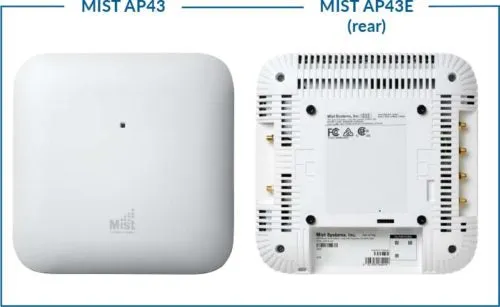

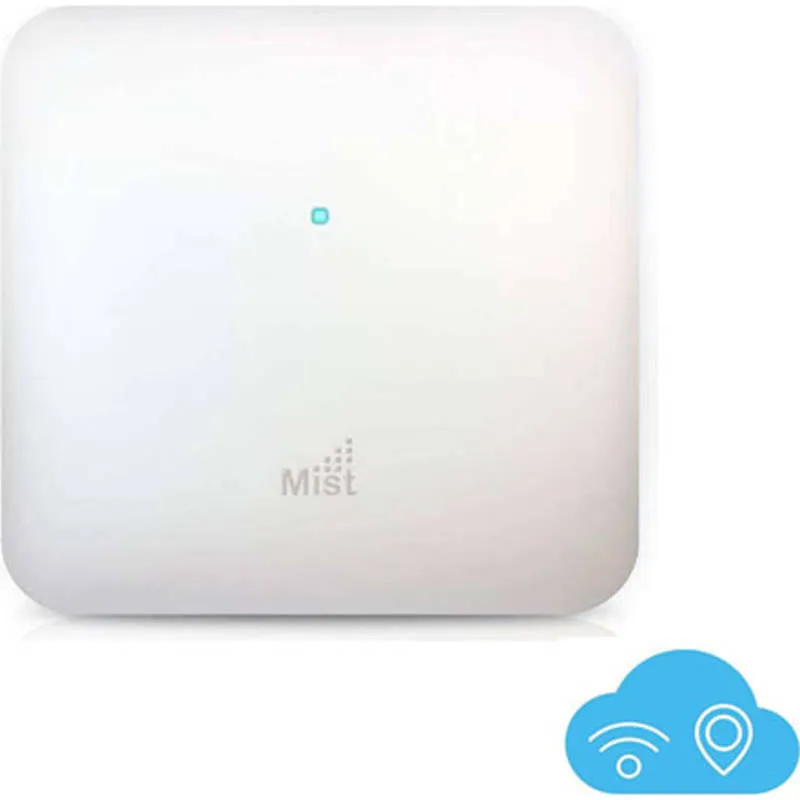

The AP43 Series is a tri-radio 4x4 802.11ax Access Point with maximum data rates of 2,400 Mbps in the 5 GHz band and 1,184 Mbps in the 2.4 GHz band. The 3rd radio functions as a network, location, and security sensor, a synthetic test client radio, as well as a spectrum monitor.
-
-
Header
- Juniper Mist Cloud Products
- MIST
- Mist
- AP43E
- 1
-
Antenna
- External detachable and internal
-
Chassis
- Indoor
-
Networking
- Wireless access point
- External
- Wireless
- IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11a, Spatial Reuse Protocol (SRP), IEEE 802.11g
- Bluetooth 5.0, 802.11a/b/g/n/ac Wave 2/ax
- 5 GHz, 2.4 GHz
- PoE
- Status
- Orthogonal Frequency Division Multiple Access (OFDMA), 4x4 SU-MIMO technology, Spectrum Analysis, Reset button, Wireless Intrusion Detection System (WIDS), Wireless Intrusion Prevention System (WIPS), 4x4 MU-MIMO technology, Radio resource management (RRM), Transit Beamforming, Proactive Analytics and Correlation Engine (PACE), Target Wait Time (TWT), Maximum Ratio Combining (MRC)
- IEEE 802.11a, Bluetooth 5.0, IEEE 802.11ax, IEEE 802.11n, IEEE 802.3at, IEEE 802.11b, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.11g
-
Interface Provided
- 1 x 1000Base-T - RJ-45, 1 x 1/2.5GBase-T (PoE) - RJ-45, 1 x - terminal block, 6 x antenna - RP-SMA, 1 x USB 2.0
-
Power Device
- External power adapter
- AC 120/230 V
- 50/60 hertz
-
Internet of Things (IoT)
- Bluetooth Low Energy (LE)
-
Miscellaneous
- White
-
Dimensions & Weight
- 8.7 inch
- 2.1 inch
- 8.7 inch
- 3.53 lbs
-
Dimensions & Weight (Shipping)
- 11.7 inch
- 11 inch
- 3 inch
- 4.81 lbs
-
Service & Support
- Limited lifetime warranty
-
Service & Support Details
- Limited warranty - lifetime
-
Environmental Parameters
- -4 degree Fahrenheit
- 122 degree Fahrenheit
- 10 - 90% (non-condensing)
-
-
