AMD Ryzen 5 5500U (6C/12T, 2.1/4.0GHz, 3MB L2/8MB L3), 4GB DDR4-3200 4GB SO-DIMM DDR4-3200, 256GB SSD M.2 2242 PCIe 3.0x4 NVMe Empty M.2 2280 PCIe 3.0x2 NVMe SSD Slot, 15.6" FHD (1920x1080) IPS 300nits Anti-glare 45% NTSC, AMD Radeon Graphics, Wi-Fi 6 11ax 2x2 BT5.1, HD 720p with Privacy Shutter, Windows 10 Pro 64

---

Unhindered performance. Impeccable style.

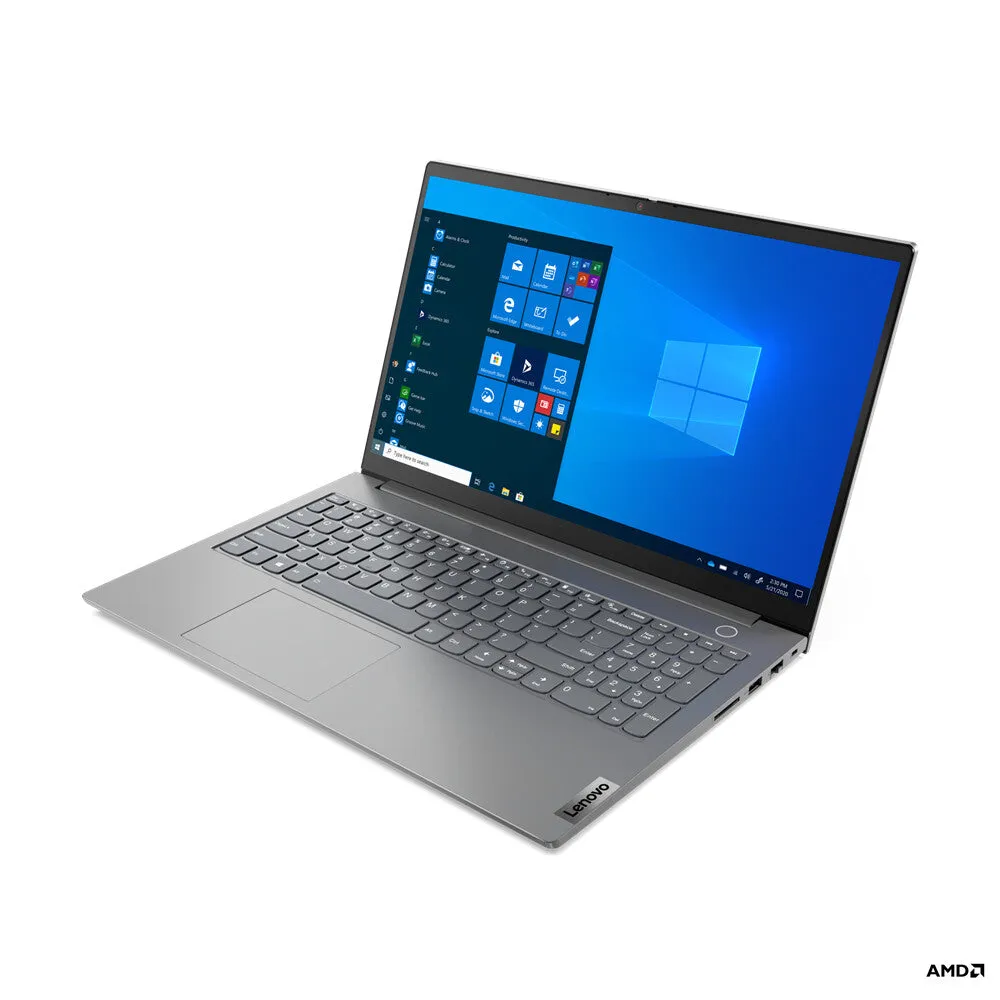

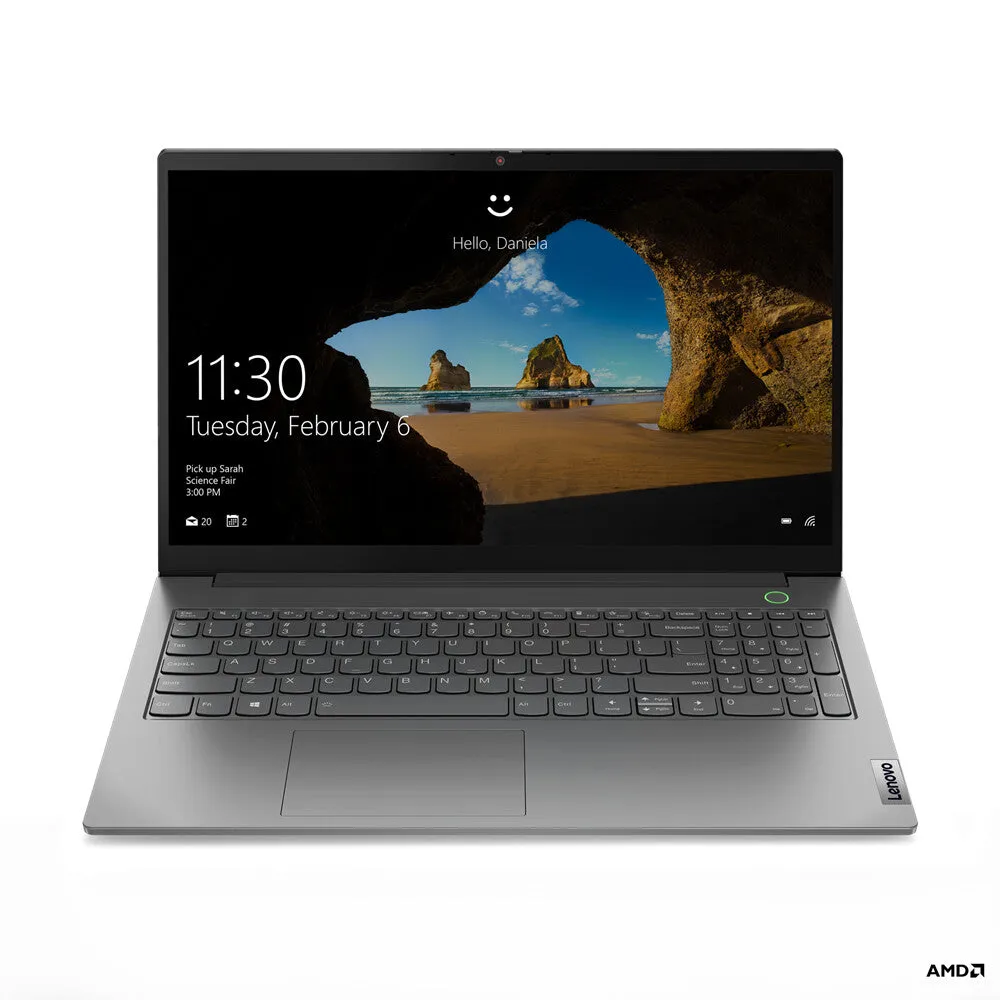

Your workflow has never been more efficient with the Lenovo ThinkBook 15 Gen 3 (AMD). This business laptop is configured for success with speedy AMD Ryzen™ 5000 Series Mobile Processors with Radeon™ Graphics, plus bountiful memory and storage options. Cutting-edge smart features simplify your life for the challenges of a changing work environment, and the 15.6" FHD offers optional touchscreen for phone-like navigation.

---

Design
Housing material	Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)
Form factor	Clamshell
Colour name	Mineral grey
Product colour	Grey
Product type	Laptop

Display
Contrast ratio (typical)	800:1
Colour gamut	45%
RGB colour space	NTSC
Display brightness	300 cd/m²
Anti-glare screen	Yes
LED backlight	Yes
Native aspect ratio	16:9
Panel type	IPS
HD type	Full HD
Touchscreen	No
Display resolution	1920 x 1080 pixels
Display diagonal	39.6 cm (15.6")

Processor
Motherboard chipset	AMD SoC
Processor cache	8 MB
Processor cores	6
Processor boost frequency	4 GHz
Processor frequency	2.1 GHz
Processor model	5500U
Processor generation	AMD Ryzen 5000 Series
Processor family	AMD Ryzen™ 5
Processor manufacturer	AMD

Memory
Maximum internal memory	36 GB
Memory slots	1x SO-DIMM
Memory layout (slots x size)	1 x 4 GB
Memory form factor	On-board SO-DIMM
Memory clock speed	3200 MHz
Internal memory type	DDR4-SDRAM
Internal memory	8 GB

Storage
Compatible memory cards	MMC, SD, SDHC, SDXC
Card reader integrated	Yes
Optical drive type	No
SSD form factor	M.2
NVMe	Yes
SSD interface	NVMe, PCI Express 3.0
SSD capacity	256 GB
Number of SSDs installed	1
Total SSDs capacity	256 GB
Storage media	SSD
Total storage capacity	256 GB

Graphics
On-board graphics card model	AMD Radeon Graphics
On-board graphics card family	AMD Radeon Graphics
On-board GPU manufacturer	AMD
Discrete graphics card model	Not available
Discrete graphics card	No
On-board graphics card	Yes

Audio
Number of microphones	2
Built-in microphone	Yes
Speaker power	2 W
Number of built-in speakers	2
Audio system	Dolby Audio
Audio chip	Realtek ALC3287

Camera
Privacy type	Privacy shutter
Privacy camera	Yes
Front camera resolution	1280 x 720 pixels
Front camera HD type	HD
Front camera	Yes

Network
WWAN	Not installed
Bluetooth version	5.1
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN	Yes
Antenna type	2x2
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Mobile network connection	No
Bluetooth	Yes

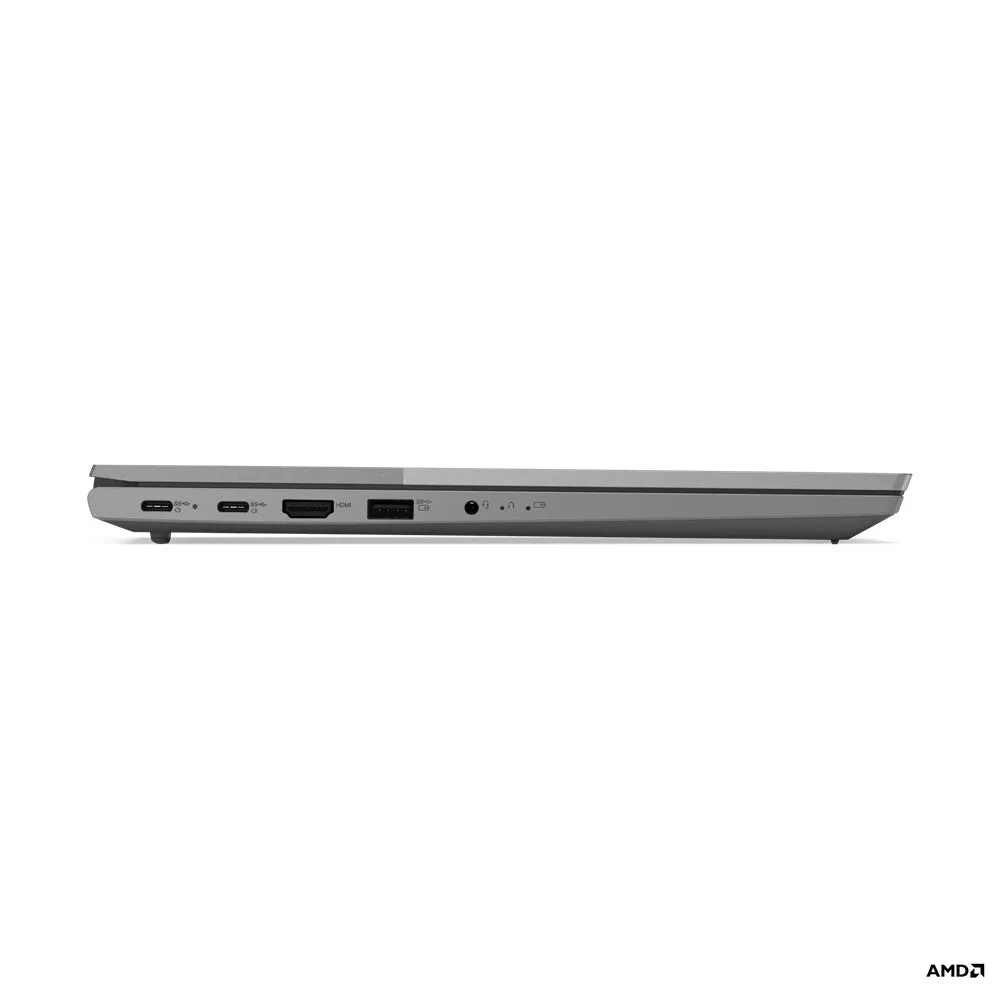

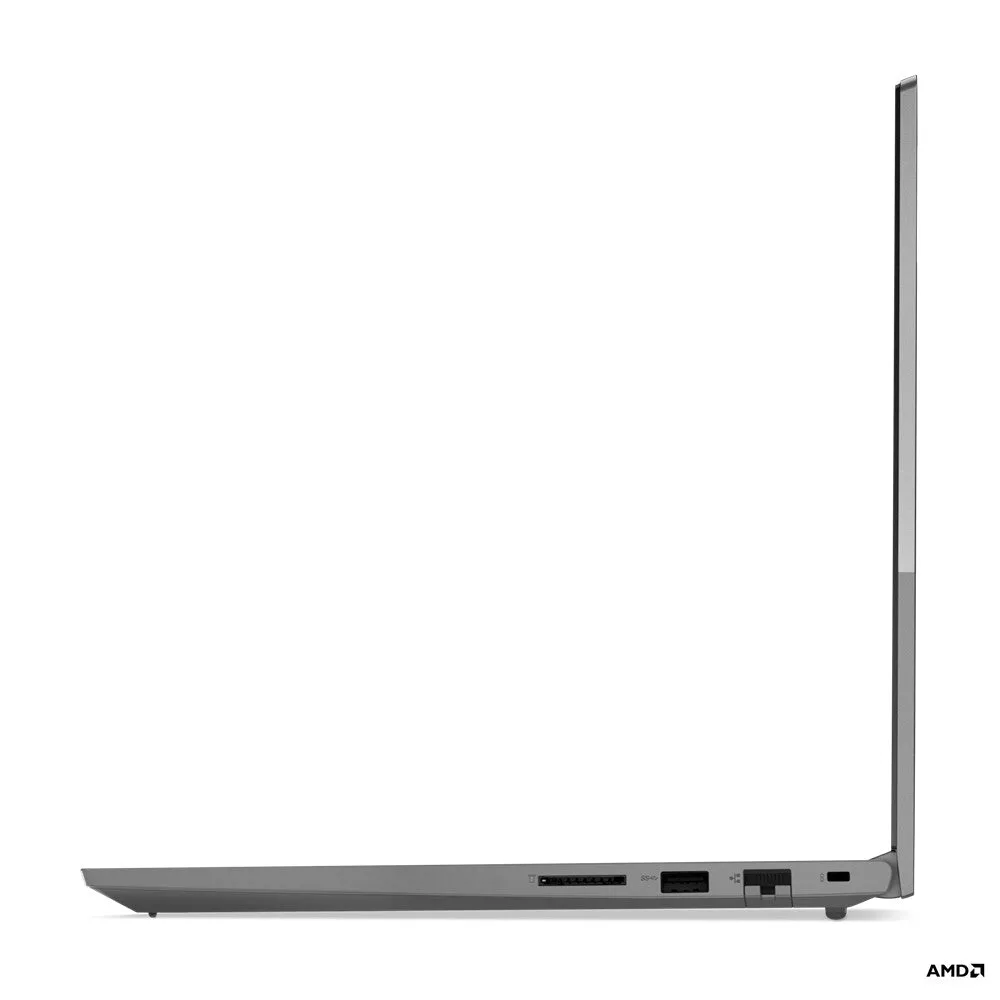

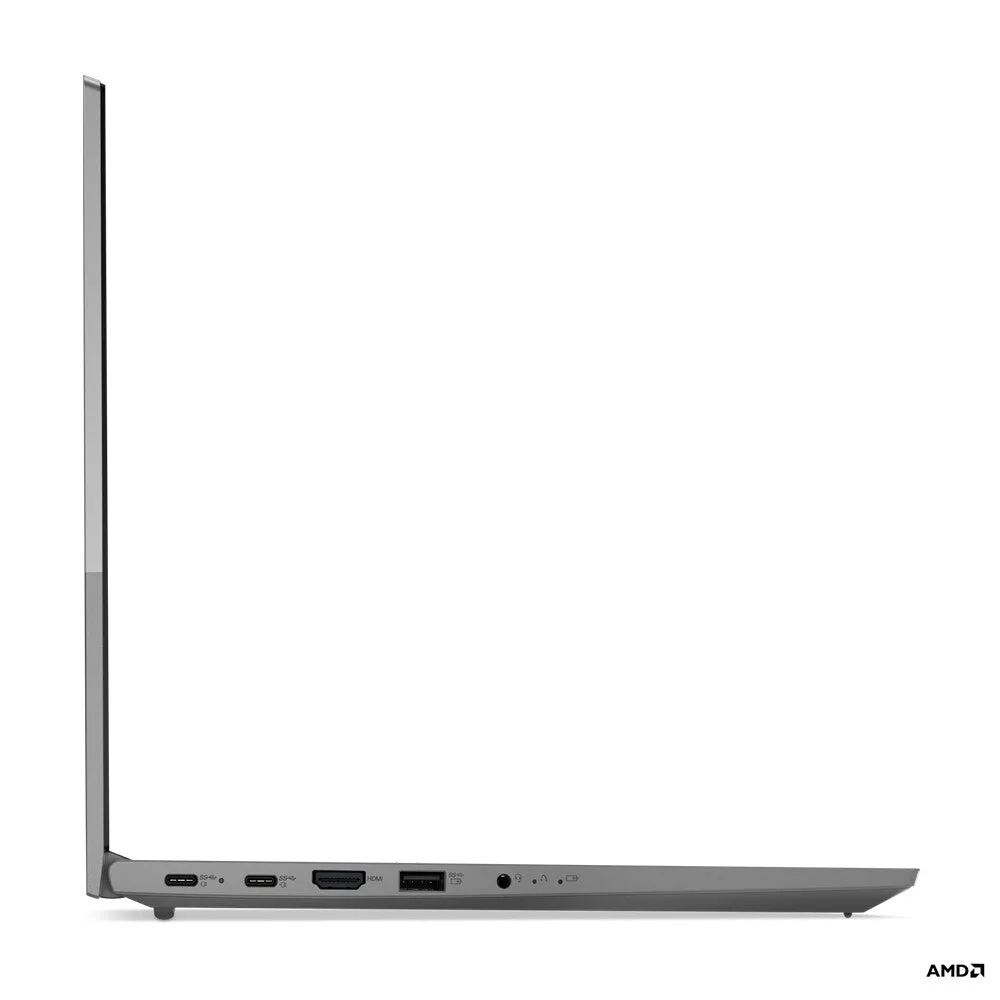

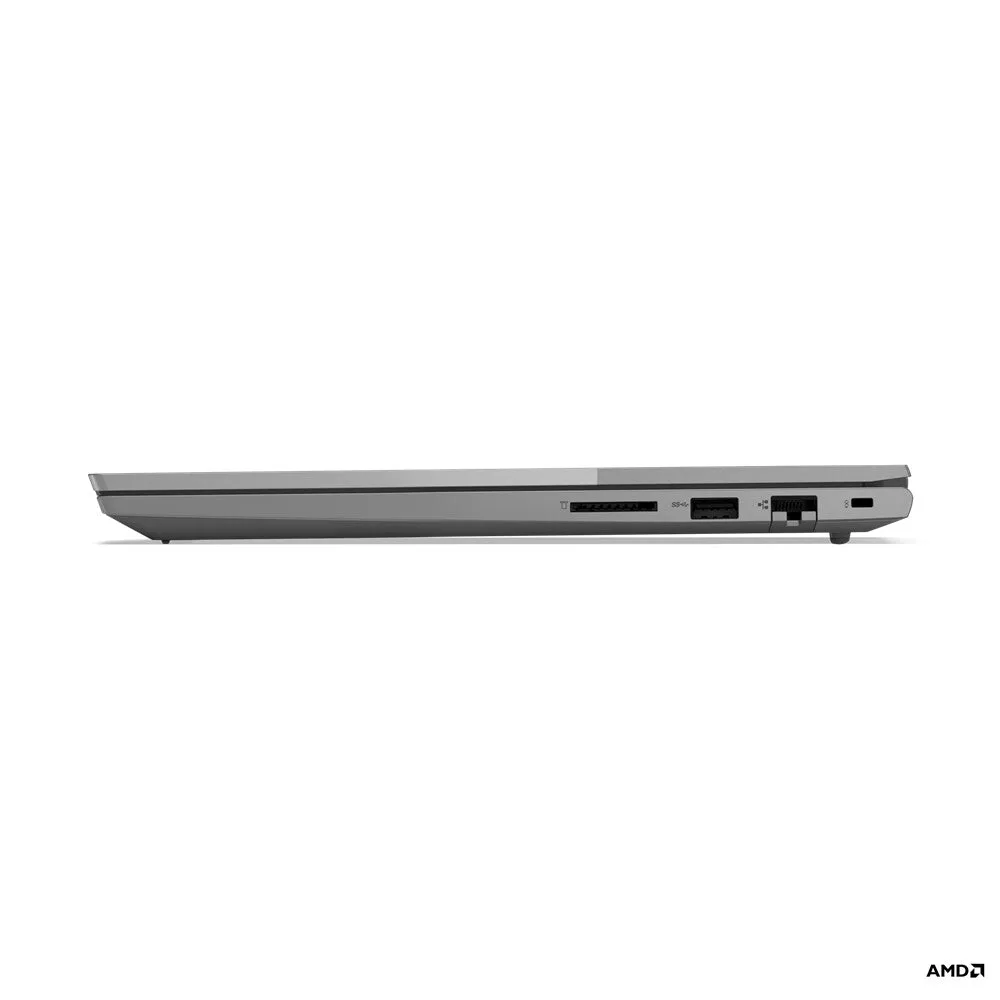

Ports & interfaces
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB Power Delivery	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Charging port type	USB Type-C
Combo headphone/mic port	Yes
HDMI version	1.4b
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2

Keyboard
Spill-resistant keyboard	Yes
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard language	UK English
Pointing device	Touchpad

Software
Trial software	Office
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro

Battery
Fast charging time (50%)	30 min
Fast charging	Yes
Battery life (max)	7.5 h
Battery capacity (Watt-hours)	45 Wh
Battery technology	Lithium Polymer (LiPo)

Power
AC adapter input voltage	100 - 240 V
AC adapter frequency	50 - 60 Hz
AC adapter power	65 W

Security
Password protection type	HDD, Power on, Supervisor
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Smart card reader	No
Fingerprint reader	Yes
Cable lock slot type	Kensington
Cable lock slot	Yes

Operational conditions
Maximum shipping altitude	3048 m
Storage relative humidity (H-H)	5 - 95%
Operating relative humidity (H-H)	8 - 95%
Storage temperature (T-T)	5 - 43 °C
Operating temperature (T-T)	5 - 35 °C

Certificates
Certification	ErP Lot 3
Compliance certificates	RoHS

Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Silver

Weight & dimensions
Height	18.9 mm
Depth	235 mm
Width	357 mm
Weight	1.7 kg

General
Product family	ThinkBook

Logistics data
Harmonized System (HS) code	84713000
