Description

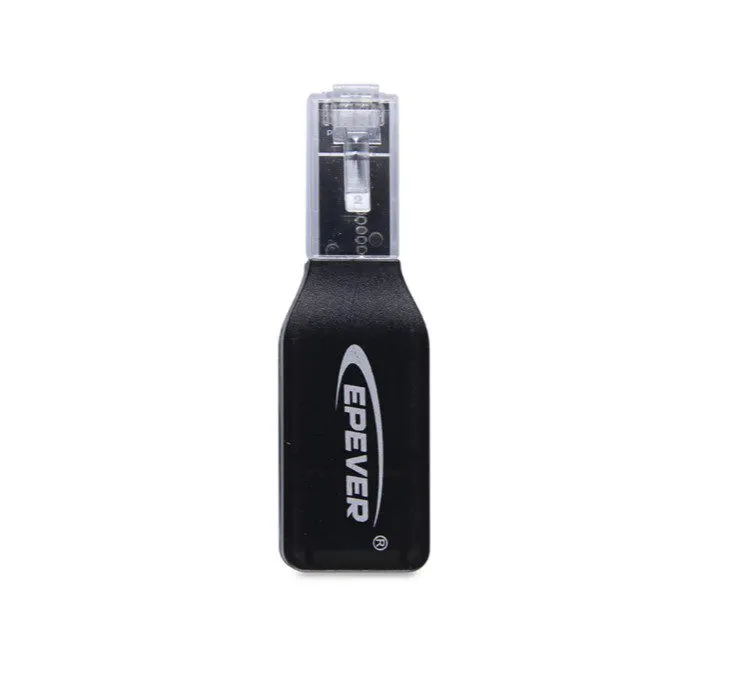

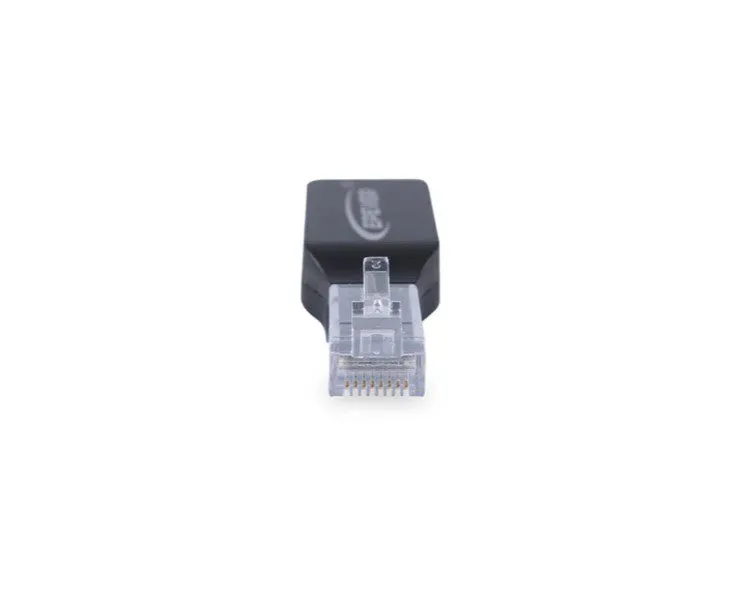

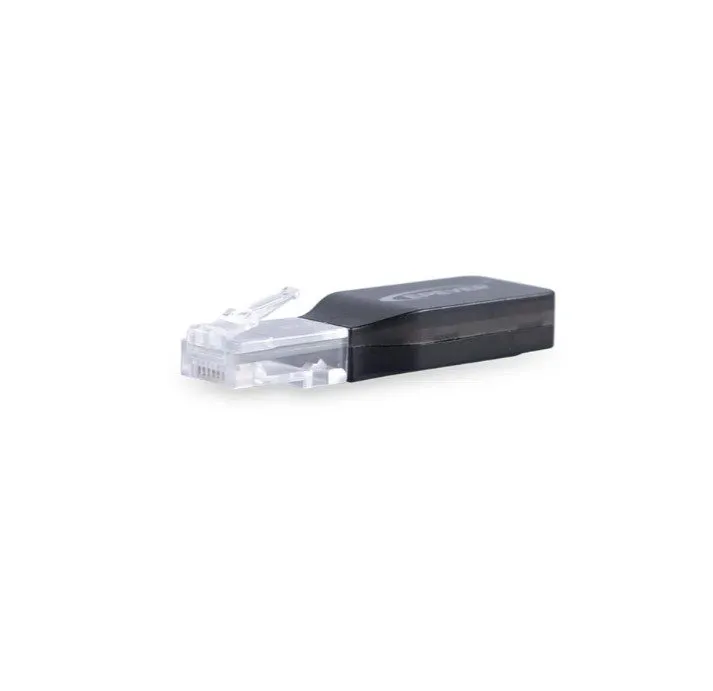

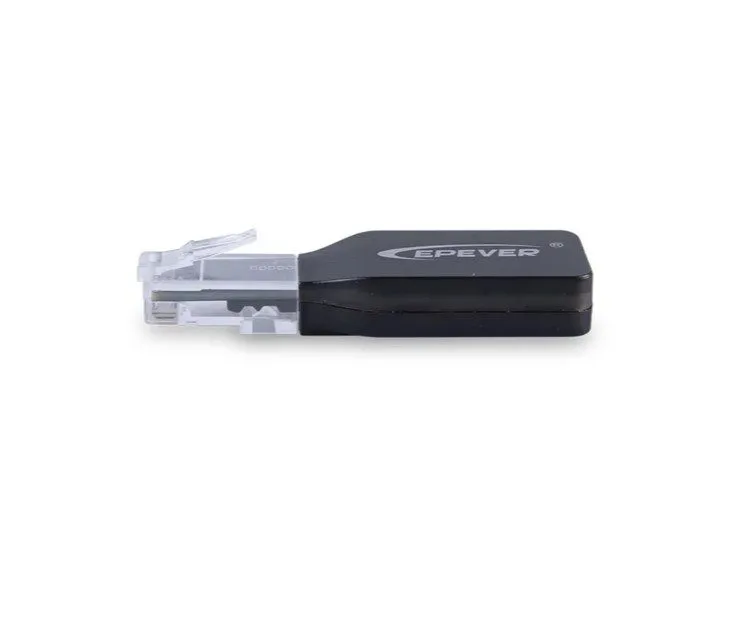

EPEVER Bluetooth RJ45 D Adapter is a new Bluetooth adapter suitable for EPEVER solar controller, inverter, and inverter/charger. Adopting Bluetooth 5.0 transmission and BLE (Bluetooth Low Energy) technology, it enables data collection, communication, and wireless monitoring of connected devices.

Epever BLE RJ45 D Product Highlights

• Support communication via phone APP.
• Support data encryption.
• Use immediately after connecting, it is easy and convenient operation.
• Feature fast communication and strong anti and convenient operation.
• Feature fast communication and strong anti-interference ability.
• Directly powered by the communication port
• Up to 10 metres of communication distance
• Products suitable for the Solar Guardian app are TracerAN(10-40A), TracerAN(50-100A), TracerBN, TracerBP, XTRA, DuoRacer, Ipower-Plus, IPT, and Upower-Hi.

Specifications

Epever BLE RJ45 D Product Specification:

• Working Voltage: 5V± 0.5V(Powered by RS485 com. port)
• Power Consumption: Average: 5V@10mA; Peak: 5V@60mA
• Communication Distance: ≤10m
• Serial port baud rate: 115200bps
• Communication method: RS485 to Bluetooth
• Connection port: RJ45 port
• Bluetooth protocol: Bluetooth 5.0
• Dimension (L x W xH): 63mm x 19mm x 13.8mm
• Working temperature: -20~70℃
• Enclosure: IP30
• Net Weight: 8.0g

Note: The Bluetooth RJ45 D module is specifically designed to be compatible with the Solar Guardian app.

Solar Guardian APP currently supports TracerAN(10-40A), TracerAN(50-100A), TracerBN, TracerBP, XTRA, DuoRacer, Ipower-Plus, IPT, and Upower-Hi.
An adapter is required for TracerAN(50-100A), TracerBP, DuoRacer, and Upower-Hi
