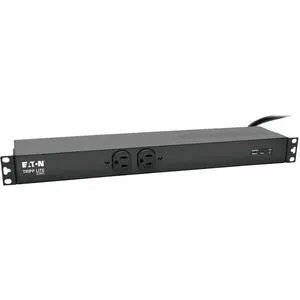

The Eaton Tripp Lite Series 2kW 120V Single-Phase Basic PDU with ISOBAR Surge Protection is the ultimate power distribution solution tailored for network-grade environments. Designed to efficiently channel power to multiple devices, this PDU is ideal for various applications such as telecom, security systems, audio/video setups, and portable or stationary rack-mount arrangements. With its high surge protection capacity and user-friendly design, it offers a reliable and secure option for your critical power management needs.

• High Surge Protection Capacity: Featuring an impressive surge protection rating of 3840 joules, this PDU shields your sensitive electronic equipment from unexpected power surges and spikes, ensuring their longevity and reliability.
• Multiple Outlets for Flexibility: The Eaton Tripp Lite PDU boasts 14 total outlets, which include 12 NEMA 5-20R outlets positioned in the back and 2 NEMA 5-15R outlets at the front. This configuration allows for simultaneous connection of a wide array of devices.
• Long Power Cord: With a robust 15-foot power cord equipped with an L5-20P input plug and a 5-20P adapter, this PDU easily connects to your facility's AC power source or protected UPS system, ensuring versatility in various installation scenarios.
• Safety First: The unit is designed with a switchless feature to prevent accidental shutdowns, and it includes a 20A circuit breaker to protect against overloads. Additionally, a red LED indicator alerts you to any suppressor or wiring faults, enhancing the safety of your setup.
• Versatile Installation Options: The PDU's all-metal housing allows for reversible installation with mounting brackets, fitting perfectly in 1U of rack space or 0U vertical mounting in an EIA-standard 19-inch rack. It can also be reoriented for permanent installation under counters or on walls with user-supplied hardware.

Technical Details

• Model: PDUH20-ISO
• Input Voltage: 120V
• Phase: Single-Phase
• Surge Protection Rating: 3840 Joules
• Outlets: 12 NEMA 5-20R (rear), 2 NEMA 5-15R (front)
• Input Plug: L5-20P (with 5-20P adapter)
• Cord Length: 15 ft.
• Rack Space Required: 1U
• Warranty: 2-year limited warranty

How to Install

Installing the Eaton Tripp Lite PDU is a hassle-free process. Follow these steps for a successful installation:

1. Identify the desired location for mounting your PDU, ensuring its proximity to an AC power source.
2. If installing in a rack, utilize the provided mounting brackets to secure the PDU in either a 1U or 0U configuration.
3. If you need to mount it under a counter or on a wall, reorient the brackets accordingly and use suitable hardware (not included) for secure placement.
4. Connect the L5-20P input plug to your AC power source. If needed, use the included 5-20P adapter for compatibility.
5. Plug your devices into the available outlets and check the green LED indicator to ensure that your equipment is protected from surges.

Frequently Asked Questions

1. What types of devices can I connect to the Eaton Tripp Lite PDU?
   You can connect any network-grade equipment including computers, servers, telecom devices, audio/video equipment, and more, provided they are compatible with the NEMA outlet types available.
2. Can I use this PDU with a generator?
   Yes, the Eaton Tripp Lite PDU can be connected to a generator, provided that the generator supplies the appropriate voltage and amperage required by the unit.
3. Is the PDU suitable for outdoor use?
   This PDU is designed strictly for indoor use. For outdoor applications, consider using weatherproof alternatives.
4. What should I do if the red LED indicates a fault?
   If the red LED indicates a suppressor or wiring fault, immediately disconnect any devices connected to the PDU and check all wiring and connections. If the issue persists, consider consulting a qualified technician.
5. How do I claim the warranty if needed?
   To claim the warranty, retain your original purchase receipt and contact Eaton Tripp Lite customer support, providing the details of your purchase along with the nature of your warranty claim.
