15 Acres per Hour*  |  Capacity: 2.11 Gal (8L)  |  Swath: 10 - 18 ft |  Max Flow: .4 GPM (1.5 LPM) |  Droplet Size 130 - 300 microns

Overview

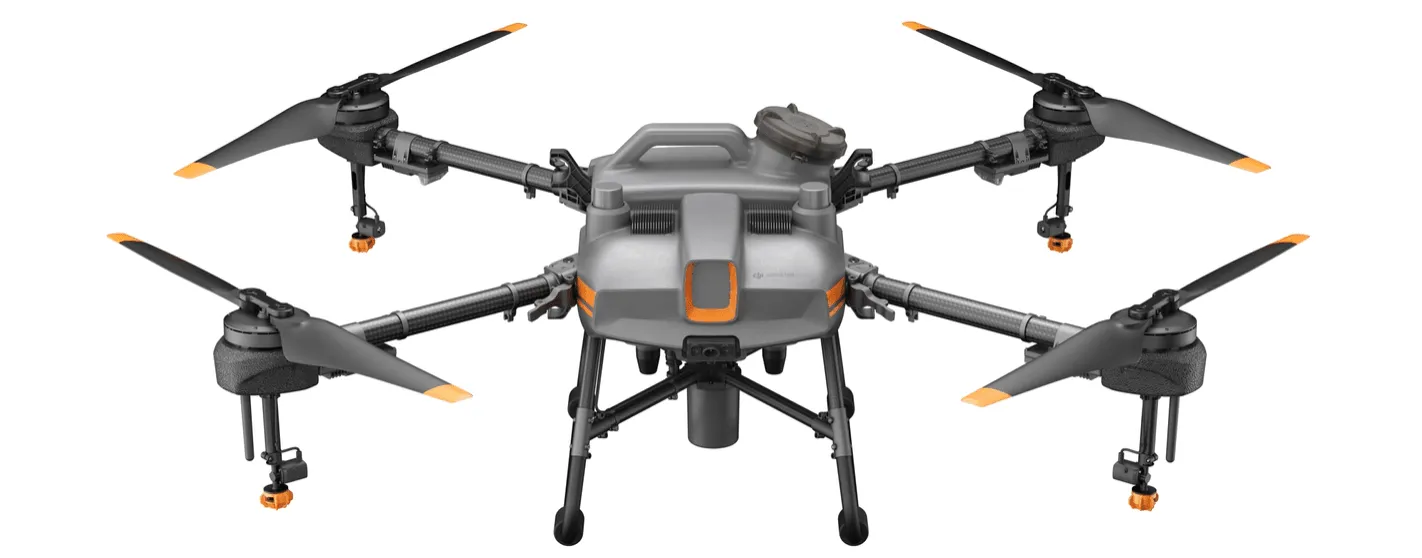

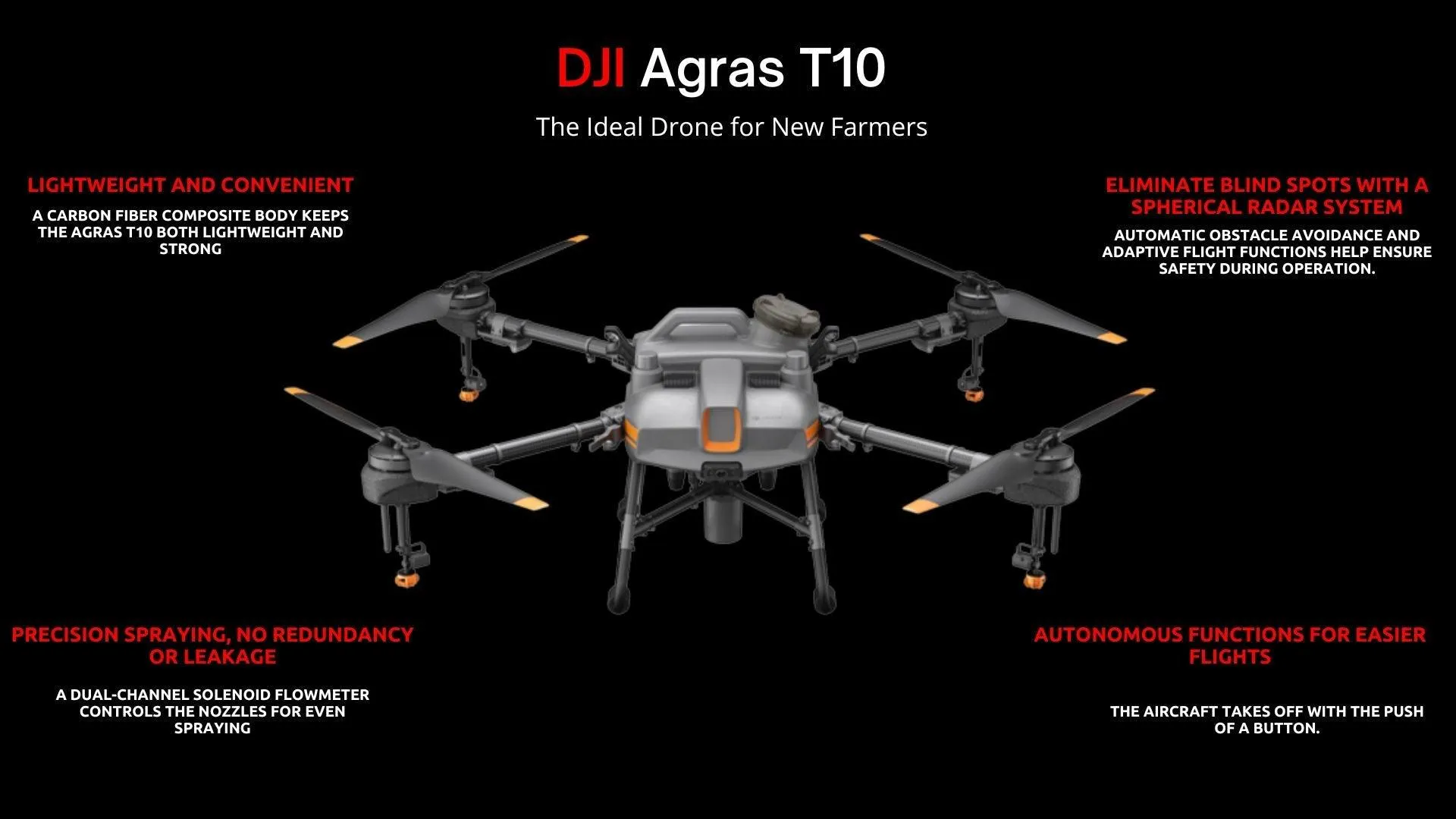

The DJI T10 Spraying & Mapping Drone

The Ideal Drone for New Farmers

Lightweight | Easier Flights | Eliminate Blind Spots

• 2.11 Gallon (8L) SPRAY TANK
• SPHERICAL RADAR SYSTEM
• OVERALL IP67 WATER RESISTANCE
• DUAL FPV CAMERAS FOR MONITORING
• RTK HIGH PRECISION OPERATION

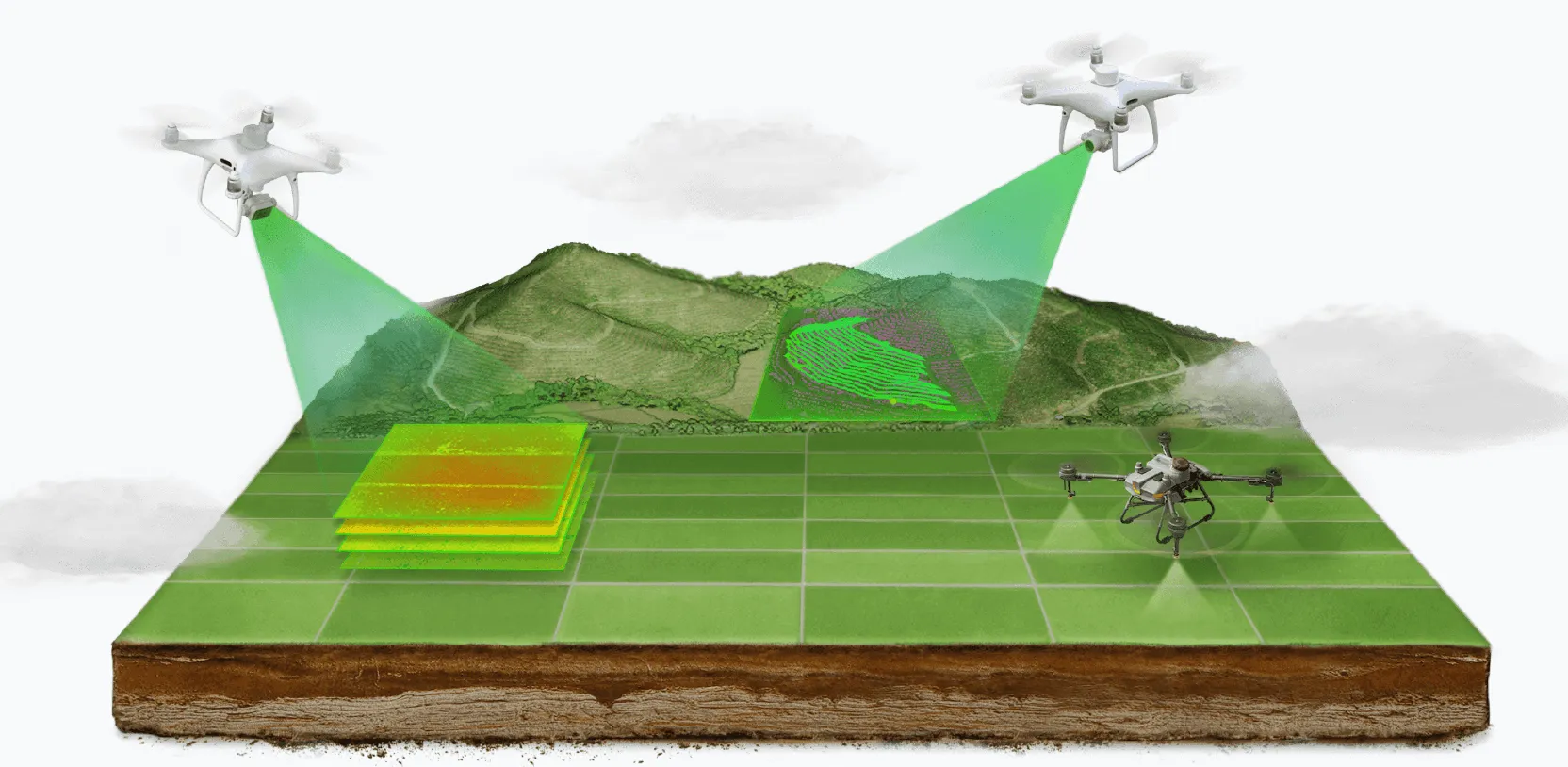

• SMART AGRICULTURE CLOUD PLATFORM



Want a closer look at the large capacity DJI T10 Sprayer Drone?

Click the "More Info" tab above







More Info



Specifications

Features

• Hourly operation efficiency

           15 acres

• High-precision radar

 Spherical Omnidirectional Radar System

• Remote control planning precision

 (RTK/GNSS)

• Removing air from pipes

 One button Air Discharge

• 3D operation planning of the AI engine

 √

• High-precision flowmeter

 √ (Dual-channel electromagnetic flowmeter with an error of ±2%)

• Level gauge

 Single-point level gauge

• Maximum spray flow

 0.4 gal /min (1. 8 L/min ) (with standard XR11001VS nozzle) 0.6 gal./min (2.4 L/min) (with optional XR110015VS nozzle）

• Pesticide tank installation method

 Quick plugging pesticide tank

• Battery installation method

 Quick plug-and-play battery

• One remote control for multiple drones

 √ (one remote control for three drones)

• D-RTK technology

 √

• Up-looking radar module

 √

• Flight dotting function

 √

• Smart cruising/return function

 √

• Intelligent supply-point prediction

 x

• Coordinated turn function

 √

• Forward-looking FPV

 √

• Backward-looking FPV

 √

• Branch targeting technology

 x



Drone parameters

• Total weight (without batteries)

 28 lbs / 13 kg



• Rated take-off weight

 17 lbs / 8 kg (near sea level)



• Hovering precision (with good GNSS signal)



• With D-RTK enabled:

 ±10 cm (horizontal) and ±10 cm (vertical)
With D-RTK disabled:
±0.6m (horizontal) and ±0.3m (vertical) (with the radar function enabled: ±0.1 m）

• RTK/GNSS frequency bands

 RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, and Galileo E1/E5

GNSS: GPS L1, GLONASS F1, and Galileo E1



• Maximum power consumption

 3,700 W



• Hovering power consumption

 3,200 W

• Hovering time

 17 min (@9,500 mAh & takeoff weight of 35.3 lbs (16 kg))

9 min (@9,500 mAh & takeoff weight of 54.7 lbs (24.8 kg))

• Maximum pitch angle

 15°

• Maximum operating flight speed

 7 m/s

• Maximum level flight speed

 10 m/s (with good GNSS signals)

• Maximum endurable wind speed

 8 m/s

• Max Take-off Altitude

 14,763.78 ft. / 4,500m

*Reduce the pesticide amount by 12% with each increase of 1,000 meters of altitude.



• Recommended operating ambient humidity

 < 93%

• Recommended operating ambient temperature

 0℃ to 45℃ (32°F to 113°F)



Rack parameters

• Maximum rotor distance

 58 inch / 1,480 mm



• Dimensions

 77 inch (1,958 mm) × 72 inch (1,833 mm) × 21.7 inch (553 mm) (with arms and blades extended)

48.5 inch (1,232 mm) × 43.7 (1,112) mm × 21.7 inch (553 mm) (with arms extended and blades folded)

23.6 inch (600 mm) × 26 inch (665 mm) × 22.8 inch (580 mm) (with arms folded)



Power system - Motor

• Stator size

 3.9 x 0.39 inch (100×10 mm)



• KV value

 84 rpm/V



• Maximum pulling force

 4.4 lbs (2 kg) /rotor



• Maximum power

 2,500 W/rotor



• Weight

 1.1 lbs (527 g)



Power system - Propellers



• Diameter × pitch

 33×9 inch



• Weight (a single blade)

 92 g

Power system - ESC



• Maximum operating current (continuous)

 32 A



• Maximum operating voltage

 9 V (14S LiPo)

FPV camera



• FOV

 Horizontal: 129°, vertical:82°



• Resolution

 1,280×720 15-30 fps



FPV spotlight

• Maximum light intensity

 2 lux @ 5-meter direct light

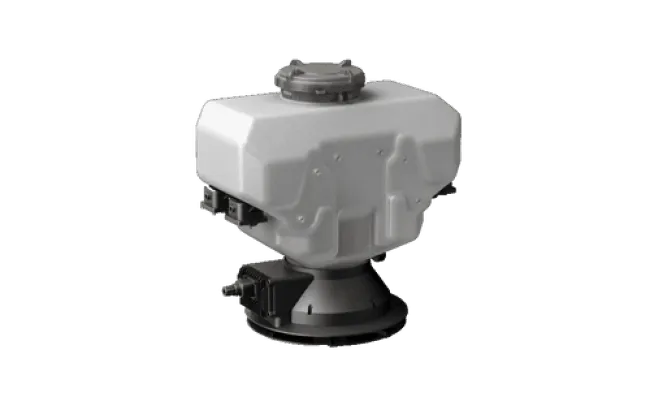

Spraying system - Operation tank



• Operation tank volume

 0.6 gallon (8 L) at full load



• Operating load

 17.6 lbs (8 kg) at full load

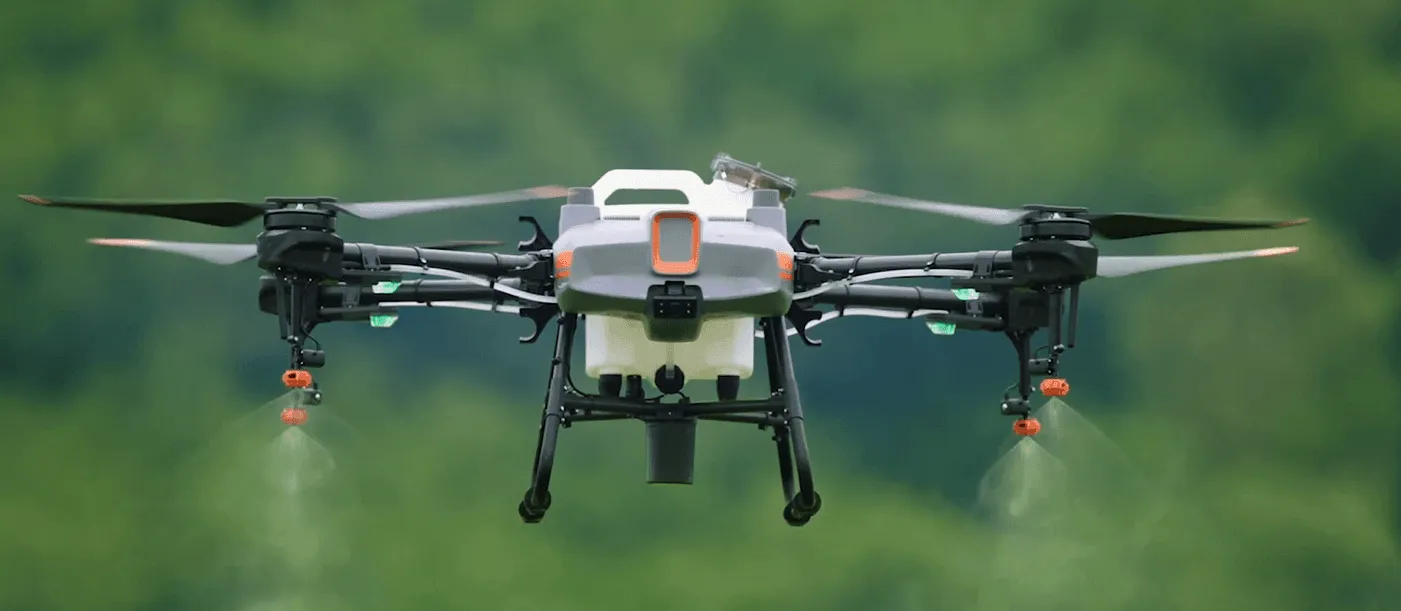

Spraying system – Nozzles



• Sprayer model

 1001VS (standard)

XR110015VS (optional)

XR11002VS (optional)

• Number of sprayers

 4



• Maximum spray flow

 XR11001VS: 0.47 gal (1.8 L) /min

XR110015VS: 0.63 gal (2.4 L) /min

XR11002VS: 0.79 gal (3 L) /min



• Diameter of atomized particle

 XR11001VS : 130 - 250 μm

XR110015VS : 170 - 265 μm

XR11002VS: 190 - 300 μm
(depending on the actual operating environment, spraying flow and other factors)

• Maximum effective spray width

 9.8 to 18 ft (3 - 5.5m) (with 4 sprayers and a distance of 3 -10 ft (1.5 - 3 meters)  to crops)



Spraying system - Water pump

• Water pump model

 Diaphragm pump



• Operating voltage

 15 V



• Maximum flow

 1.3 gal (5 L/) min ×1



Spraying system – Flowmeter



• Flow measurement range

 5.2 - 6.6 gal (20 - 25 L) /min



• Flow measurement error

 < ±2%



• Measurable liquid

 Conductivity > 50 μS/cm. Typical liquid: Tap water, aqueous organic or inorganic pesticides, and the like



Omnidirectional obstacle avoidance radar



• Model

 RD2424R

• Operating frequency

 SRRC/NCC/FCC: 24.05 to 24.25 GHz
MIC/KCC/CE: 24.05 to 24.25 GHz

• Operating power consumption

 12 W



• Equivalent isotropic radiated power (EIRP)

 SRRC: < 13 dBm; NCC/MIC/KCC/CE/
FCC:< 20 dBm



• Height hold and terrain following

 Height measurement range: 3.3 - 98.4 ft (1 - 30m)
Height hold range: 4.9 - 49.2 ft (1.5 - 15m)
Maximum slope in mountain mode:35°



• Obstacle avoidance system

 Perceivable distance: 4.9 - 98.4 ft (1.5 - 30m)

FOV: 360° (horizontal), ±15° (vertical)

Conditions of use: The relative flight height of the drone is above 4.9 ft (1.5m) and the speed below 23 ft/s (7 m/s)

Safe distance: 8.2 ft (2.5m) (the distance between the tip of the blade and the obstacle after the                      drone is braked and hovering stably)

Obstacle avoidance direction: Horizontally omnidirectional obstacle avoidance



• Protection class

 IP67

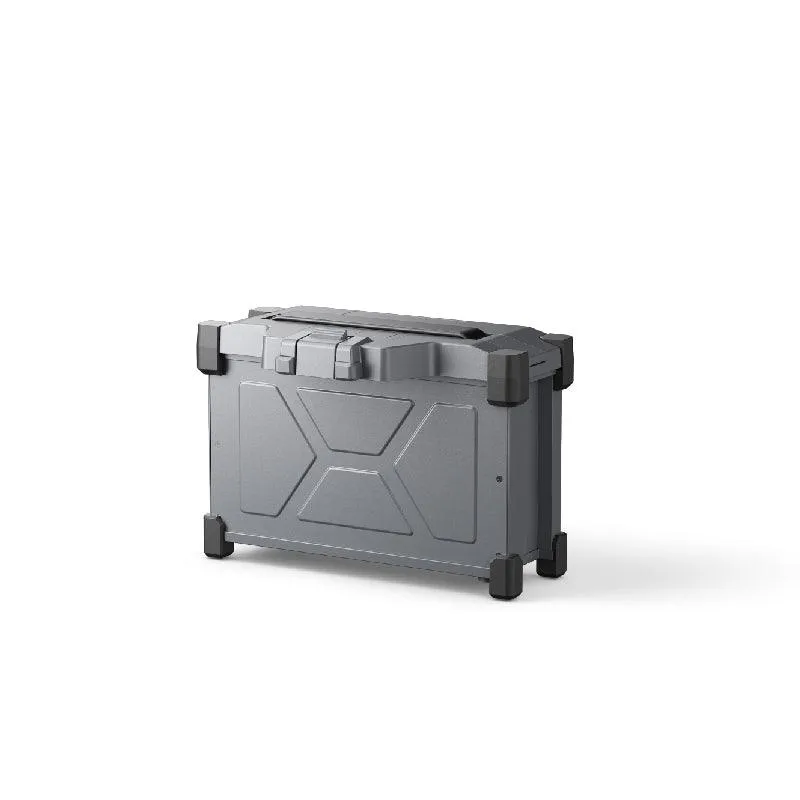

Battery



• Model

 BAX501-9500mAh-51.8V



• Weight

 About 8.4 lbs (3.8 kg)



• Discharge rate

 5C



• Protection class

 IP54 board-level embedment protection



• Capacity

 9,500 mAh



• Voltage

 8 V

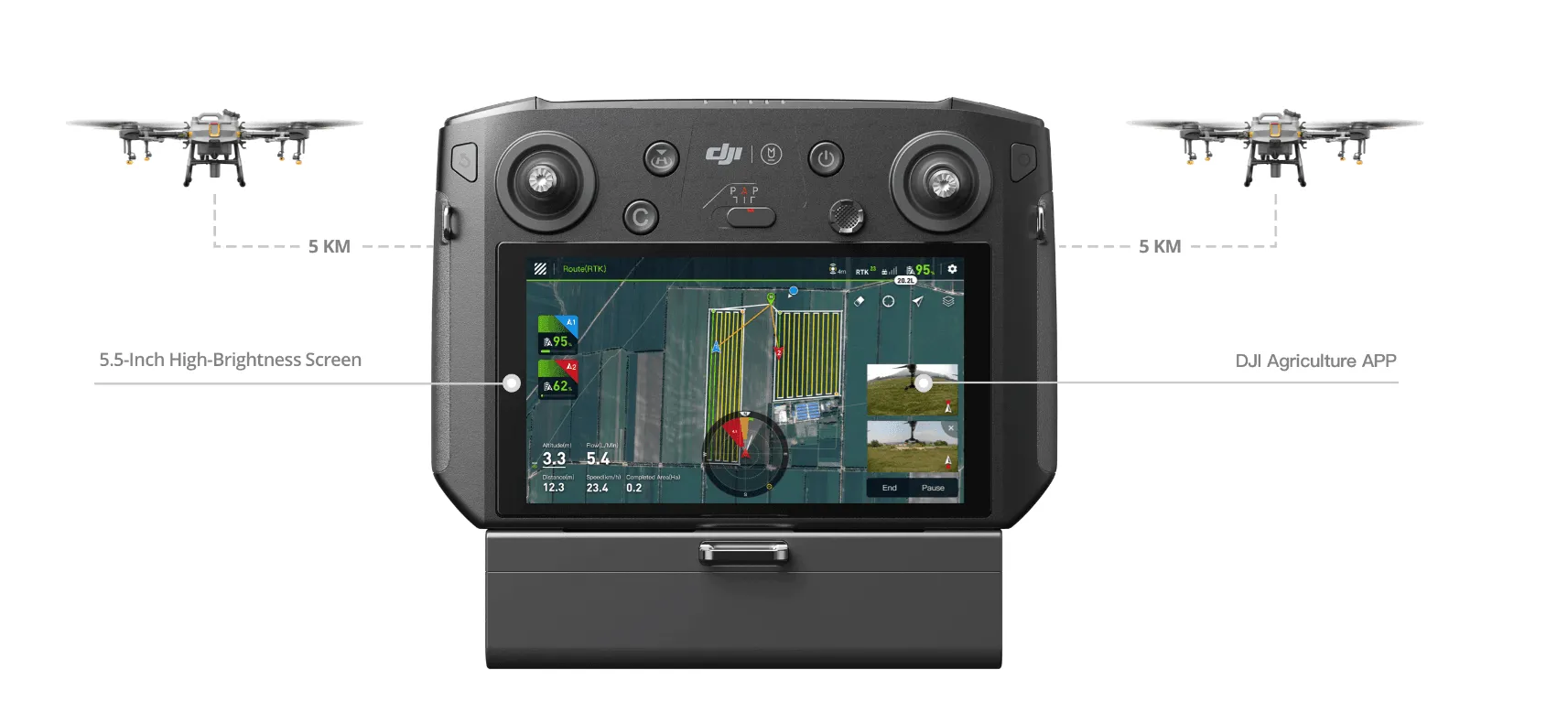

Remote control



• Model

 RM500-ENT



• Operating frequency of OcuSync 2.0

 4000 to 2.4835 GHz
5.725 to 5.850 GHz



• Effective signal distance of OcuSync 2.0 (without interference and blockage)

 SRRC: 5 km; MIC/KCC/CE: 4 km; FCC: 7 km (measured at the operating                                 height of 2.5m)



• EIRP of OcuSync 2.0

 4 GHz
SRRC/CE/MIC/KCC: 18.5 dBm;
FCC: 29.5 dBm;
5.8 GHz
SRRC: 28.5 dBm;
FCC: 20.5 dBm
CE:12.5 dBm



• Wi-Fi Protocols

 Wi-Fi Direct, Wireless Display, and 802.11a/g/n/ac. 2 × 2 MIMO Wi-Fi is supported



• Wi-Fi operating frequency

 4000 to 2.4835 GHz
5.150 to 5.250 GHz
5.725 ~ 5.850 GHz



• Wi-Fi EIRP

 4 GHz
SRRC/CE: 18.5 dBm; FCC/MIC/KCC: 20.5 dBm;
5.2 GHz
SRRC/FCC/CE/MIC: 14 dBm; KCC: 10 dBm;
5.8 GHz
SRRC/FCC: 18 dBm; CE/KCC: 12 dBm;



• Bluetooth protocol

 Bluetooth 4.2



• Bluetooth operating frequency

 4000 to 2.4835 GHz



• Bluetooth EIRP

 SRRC/MIC/FCC/CE/KCC:6.5 dBm



• Positioning

 GPS GLONASS



• Display

 5-inch screen with a resolution of 1,920×1,080 and brightness of 1,000 cd/m², and                          Android OS



• Operating memory (RAM)

 4GB LPDDR4



• Storage space (ROM)

 32 GB scalable storage space, and a microSD card with the capacity up to 128 GB and                      transfer speed of UHS-I Speed Grade 3 is supported



• HDMI

 HDMI 1.4



• Supported drones

 T30 and T10 crop protection drones



• Operating power consumption

 18 W



• Operating ambient temperature

 -10℃ to 40℃ (14°F to 104°F)



• Storage ambient temperature

 -30℃ to 60℃ (-22°F to 140°F) (within 1 month)
-30℃ to 45℃ (-22°F to 113°F) (1 to 3 months)
-30℃ to 35℃ (-22°F to 95°F) (3 to 6 months)
-30℃ to 25℃ (-22°F to 77°F) (more than 6 months)
(with the capacity of built-in batteries at 40 to 60%)



• Charging ambient temperature

 5℃ to 40℃ (41°F to 104°F)
