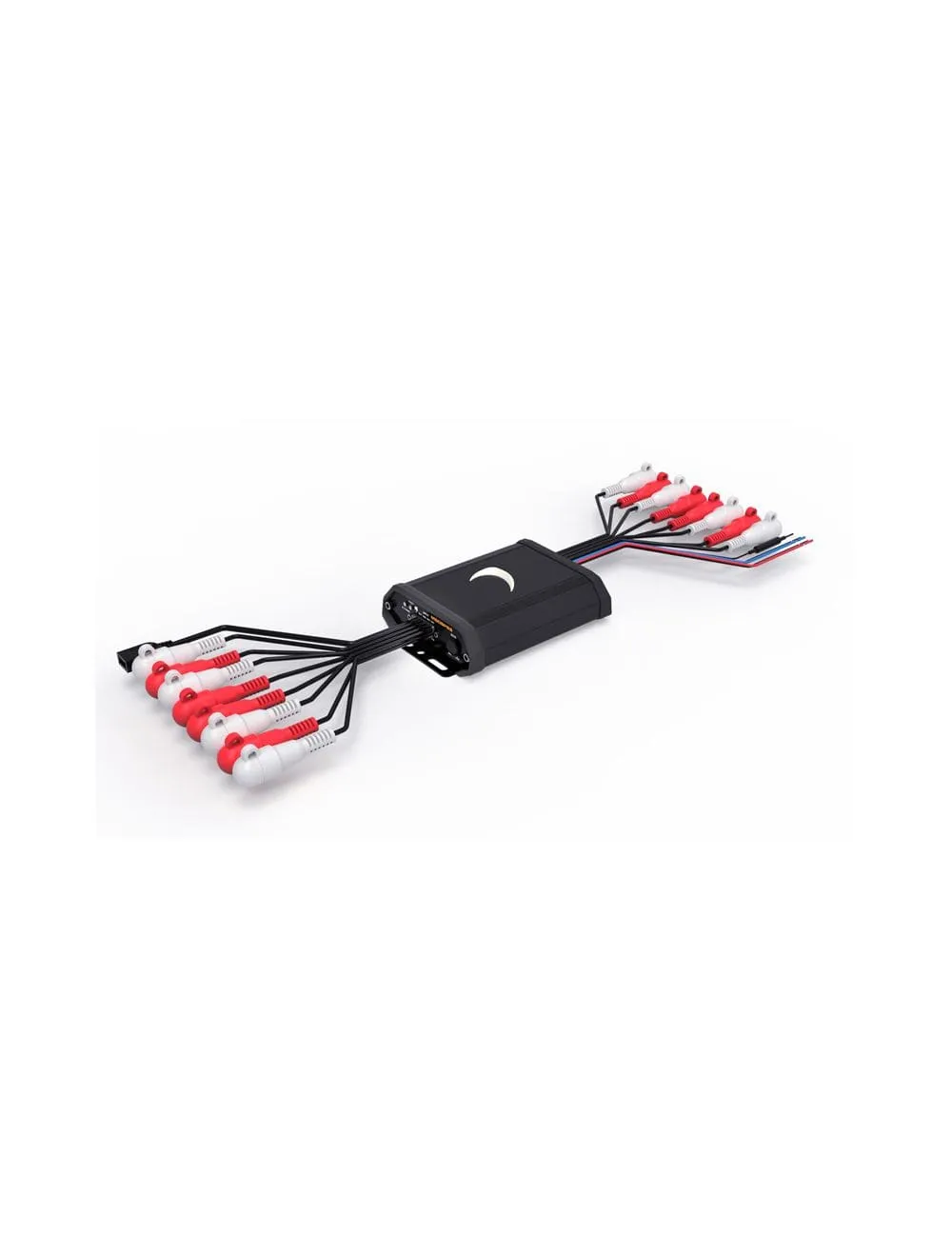

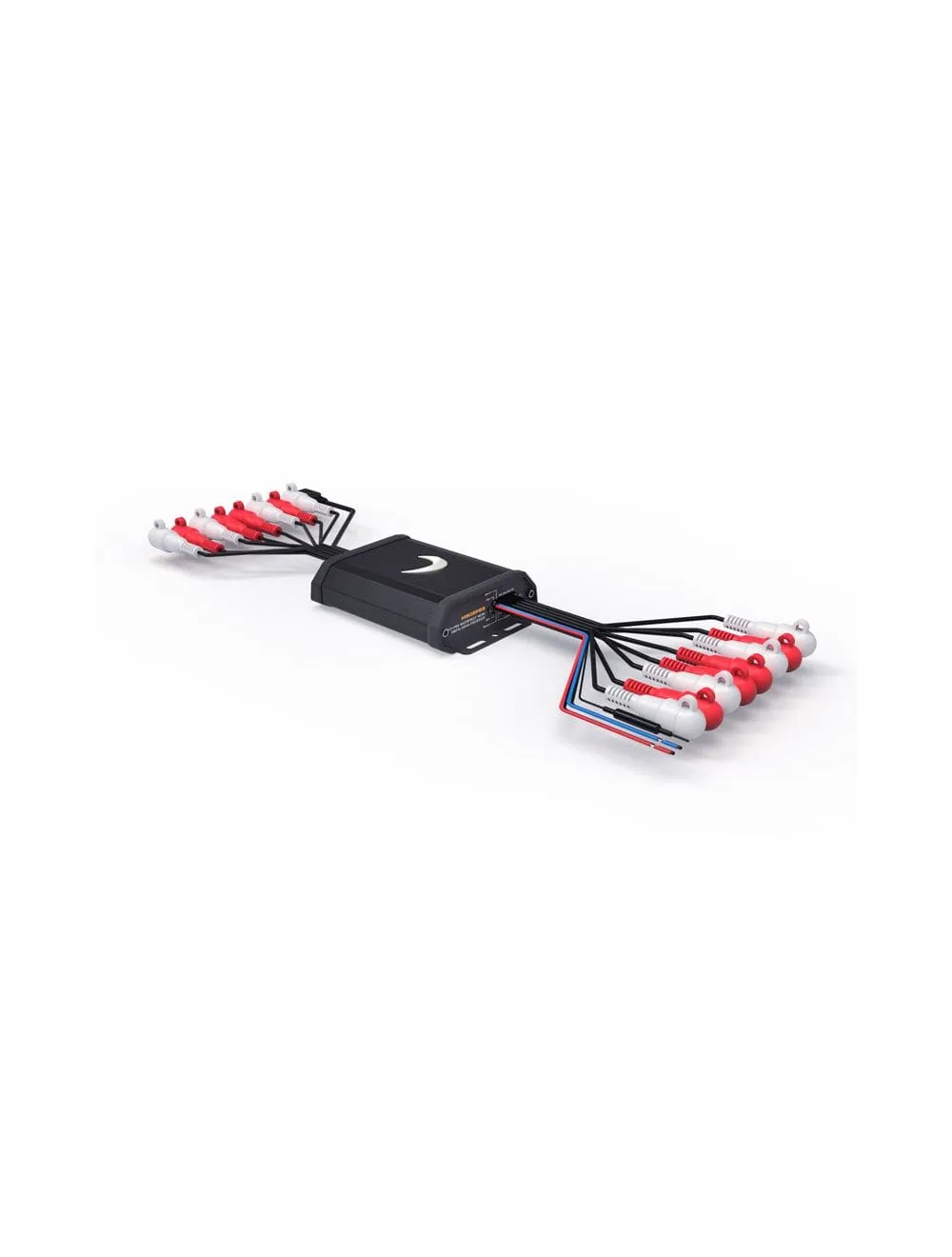

8 Channel Waterproof Micro Digital Single Processor (DSP)

MSDSP88 - 8 - Channel Waterproof Micro Digital Single Processor

The SMALLEST DSP in the marine market

Diamond Audio expanded its Digital Signal Processor category by adding the practical and easy-to-use all-weather and MSDSP88 models. With the ability to integrate into any auto, motorcycle, boat, or power sports vehicle, adjusting time delay, equalization, and optimizing the sound couldn't be simpler.

Features:

8-Channel (2/4/86/8 IN / 8 OUT) IP7 Rating Waterproof Digital Signal Processor
31 Band Parametric EQ
Fully Adjustable Crossovers

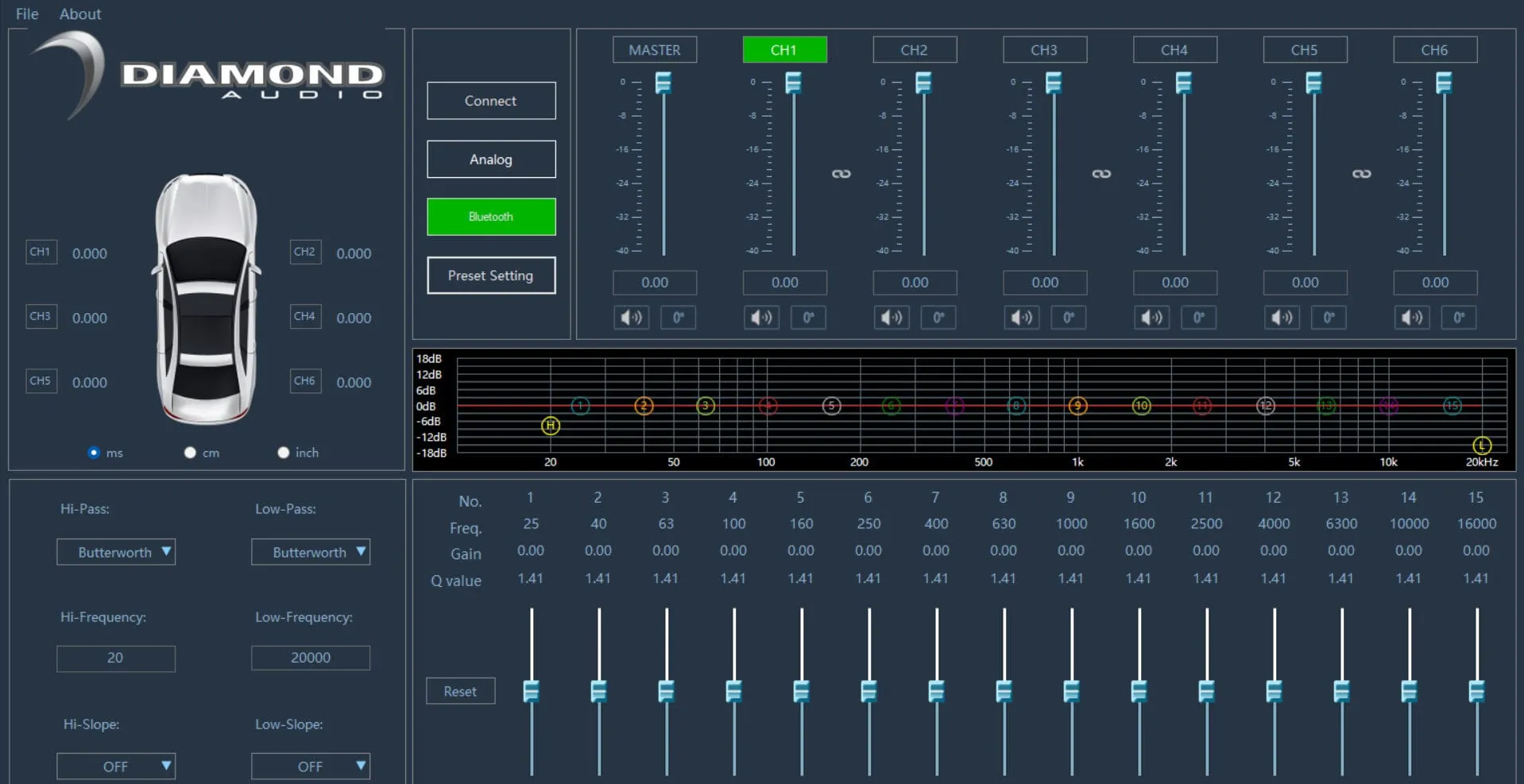

Tuning Operating Software: Windows
6.5 Volts Max RCA Pre-Out Voltage
Delay Timing Alignment
Signal to Noise Ratio: > 98dB
Frequency Response: 10-25KHz
Channel Separation: > -72dB
Advanced CSR 5.0 Bluetooth Module for Direct Music Streaming (no radio needed)
Wired External Antenna for Enhanced Bluetooth Signal Reception
Conformal Coated 4-Layer Footprint Circuit PC Board
Dimensions: 4.8” x 3.35” x 1.24” / 122.5 x 85.0 x 31.6 mm

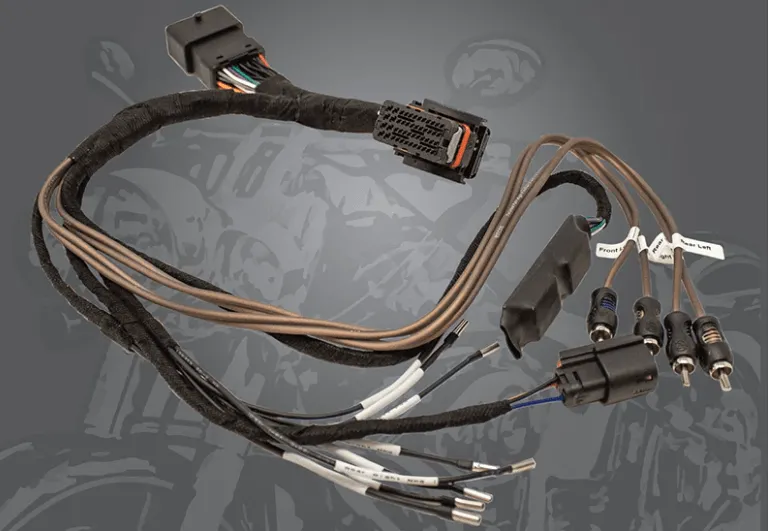

RCA Input and output, Power Supply Harness, and PC USB Cables are Included
REQUIRES a Windows Computer to program
