NEW! 7 XL Linkable Kit
FULL ADJUSTMENT. TOTAL PERFORMANCE. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs. This kit includes 7 XL Sports, Links, vehicle specific mounting brackets, wiring harness and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain.

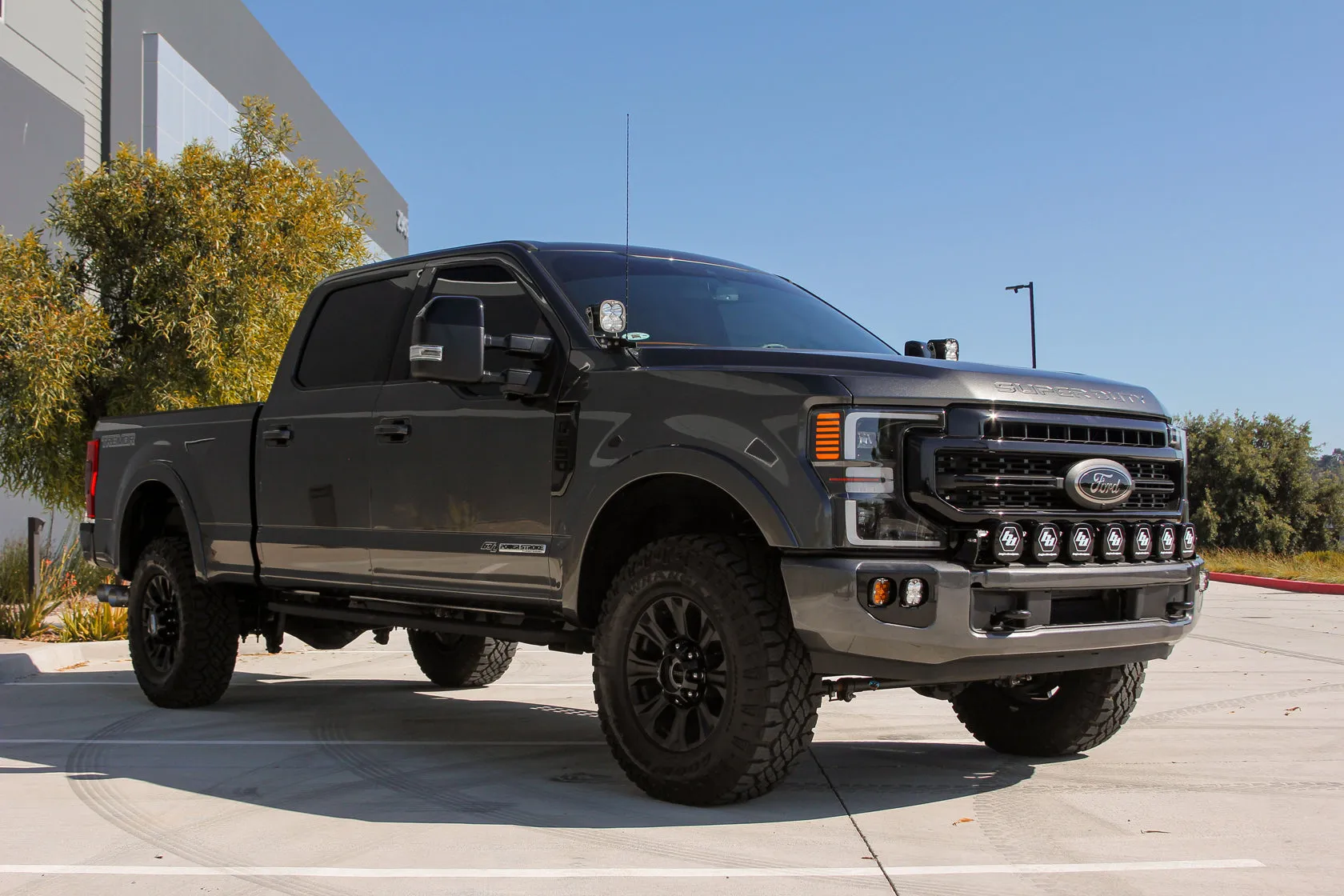

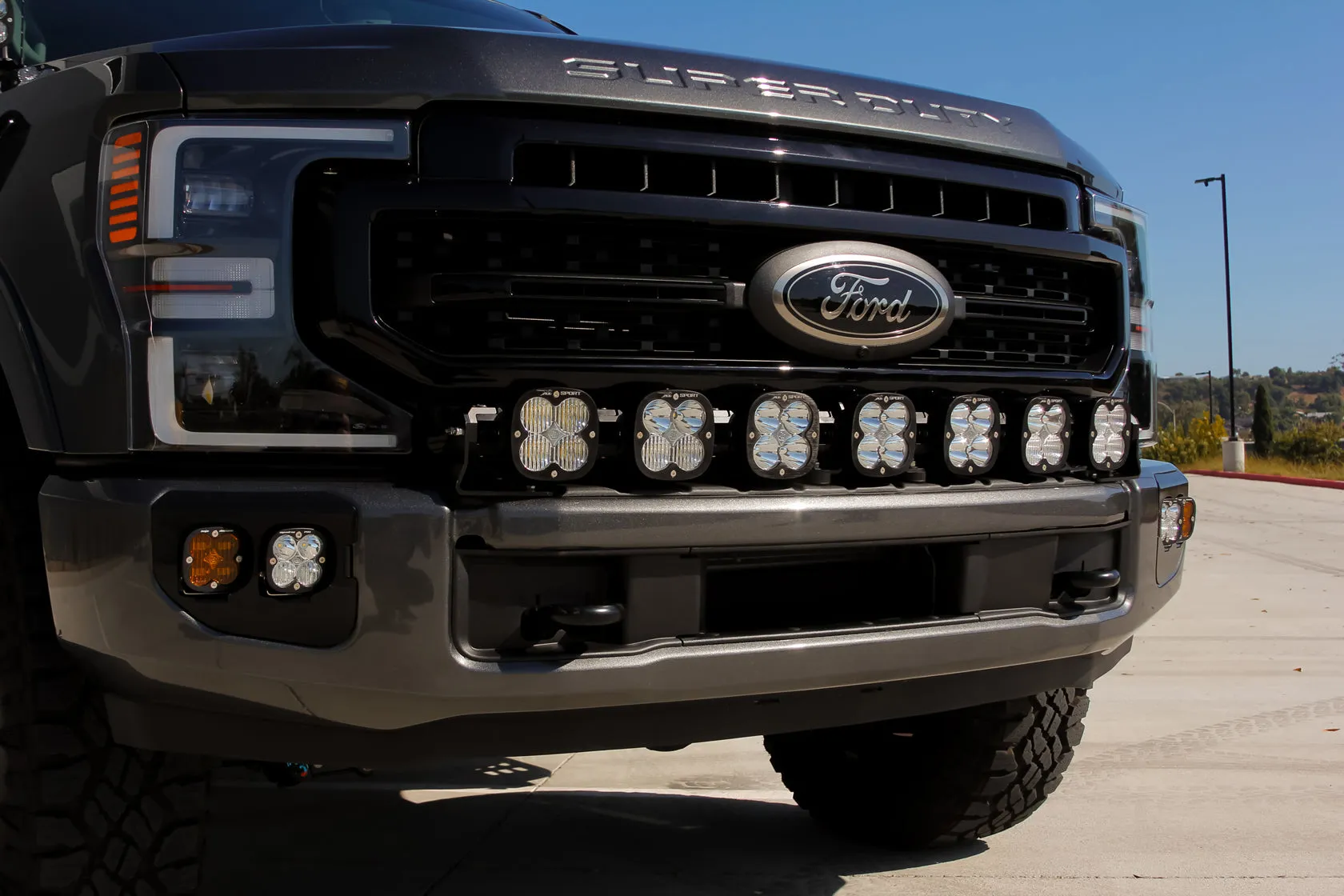

This kit includes all the necessary components to outfit your 2020 SuperDuty with 7 XL Linkables. The harness in this kit is a toggle switch style designed for the enthusiast who DOES NOT have the factory upfitters in their SuperDuty.
FEATURES
- Satisfactions Guarantee – 30 Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService® – Replaceable Lenses And Optics
- ClearView® – All The Light, Right Where You Need It.
- MoistureBlock™ – Waterproof, Rain Proof, Submersible
- CopperDrive® – Only LED Driven At 100%
- 5000K Daylight – Less Driver Fatigue, Natural Color
SPECIFICATIONS
- Lumens: 22,050 Utilizing 28 LEDs
- Wattage/Amps: 182W / 14A
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Powder Coated Cast Aluminum
- Bezel: Billet Machined Aluminum
- Hardware & Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof, Submersible to 9ft)
- IK10 Compliant (Mechanical Impact Testing)

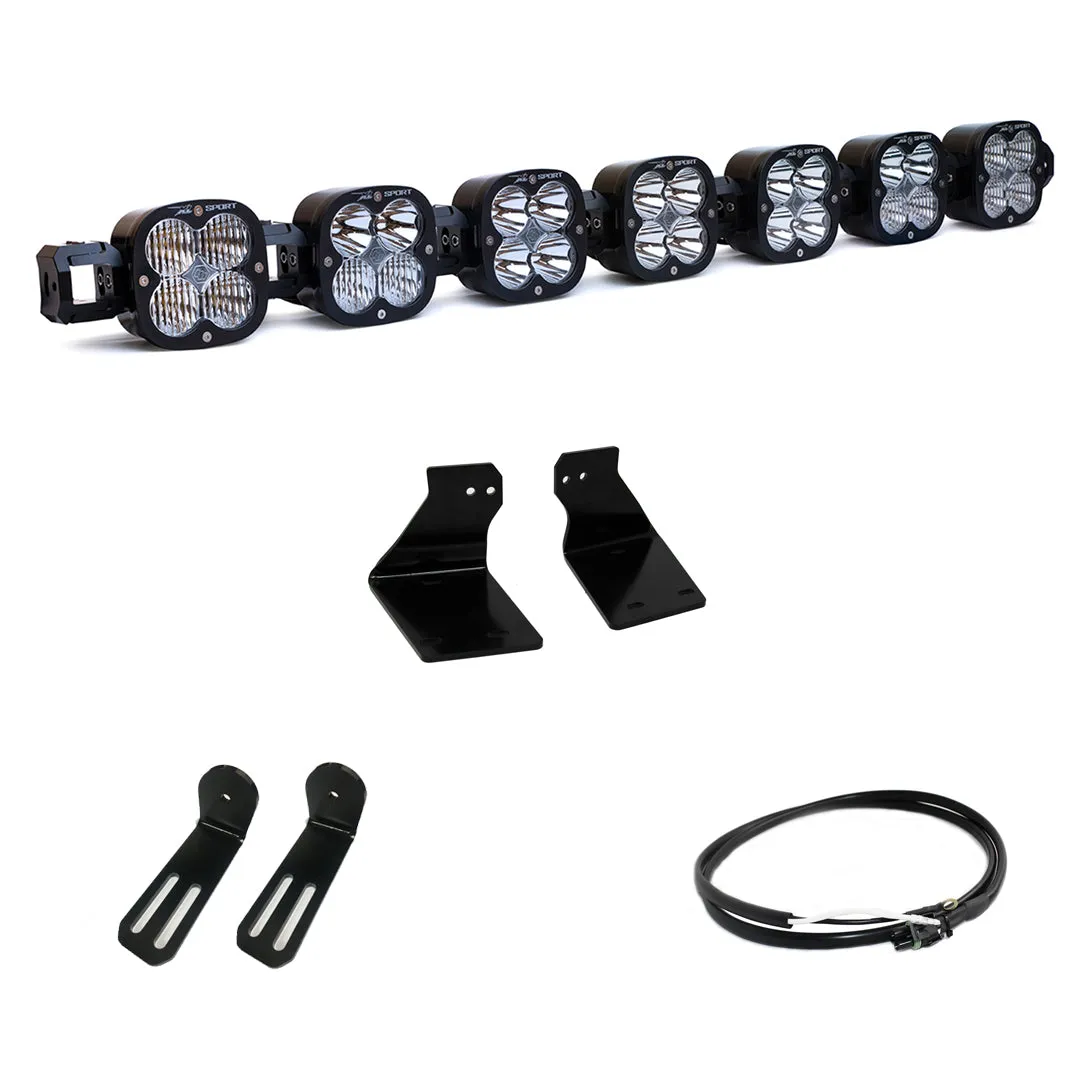

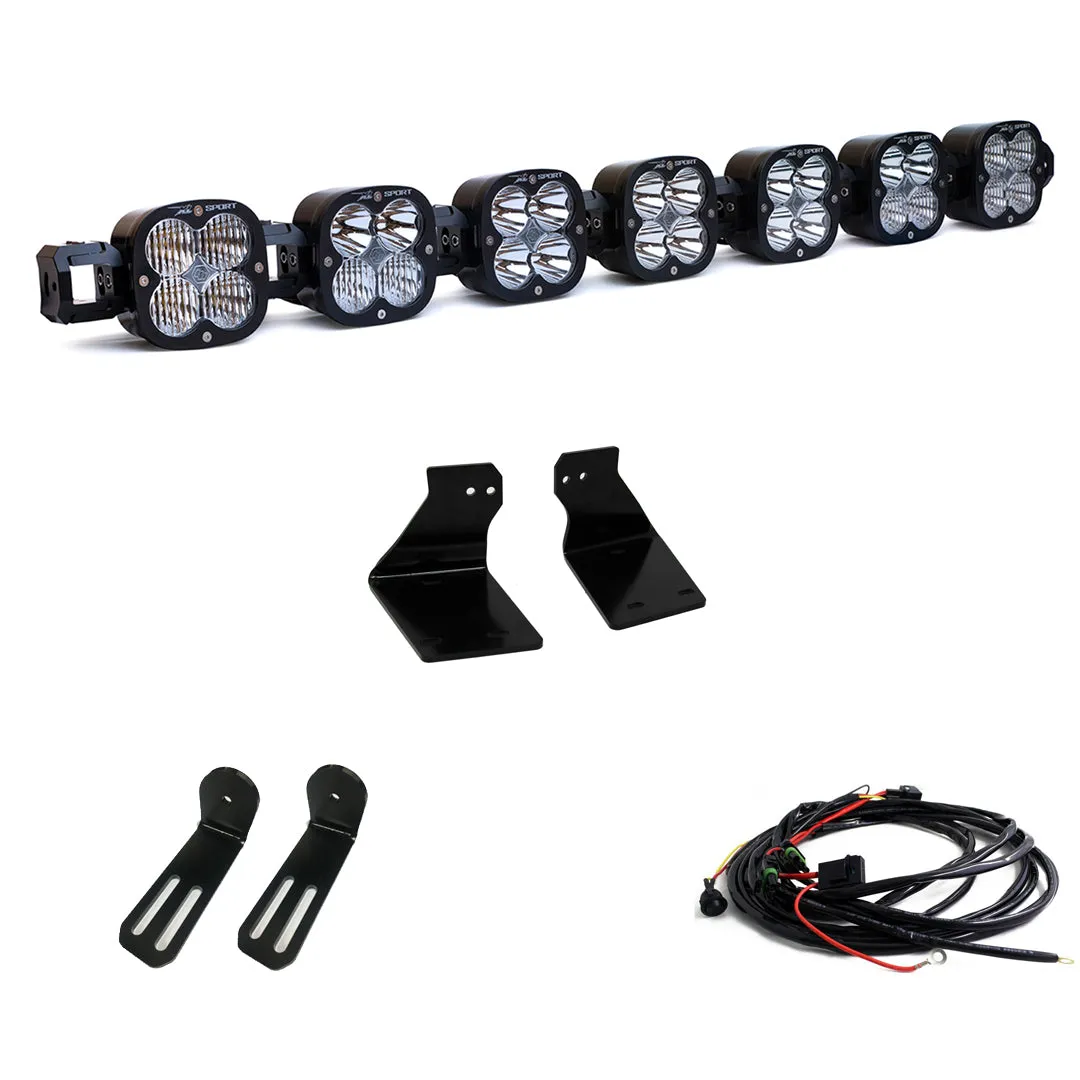

INCLUDES
- x3 XL Sport Spot LED Light
- x2 XL Sport Driving/Combo LED Light
- x2 XL Sport Wide Cornering LED Light
- x7 XL Sport Rock Guards
- Support Kit
- Standard Harness
- Super Duty Brackets
ADJUSTIBILITY
BEAM PATTERNS
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
