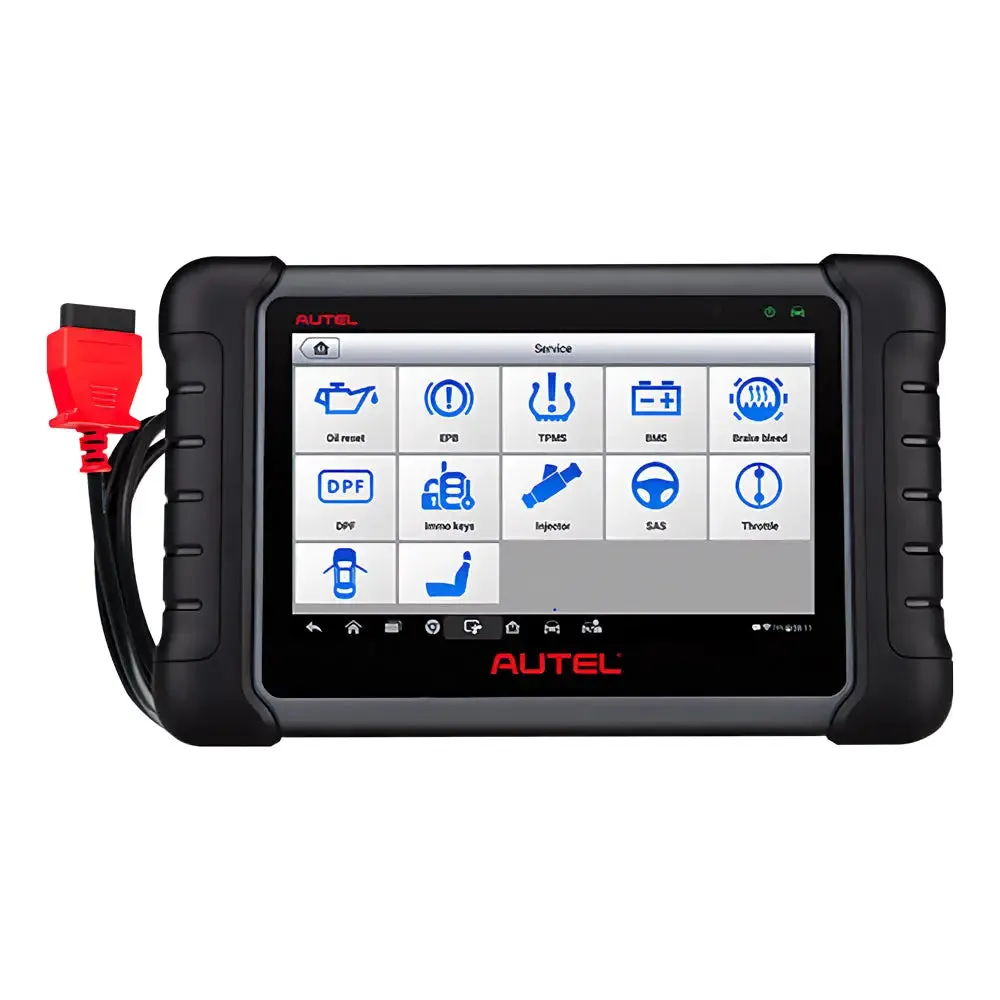

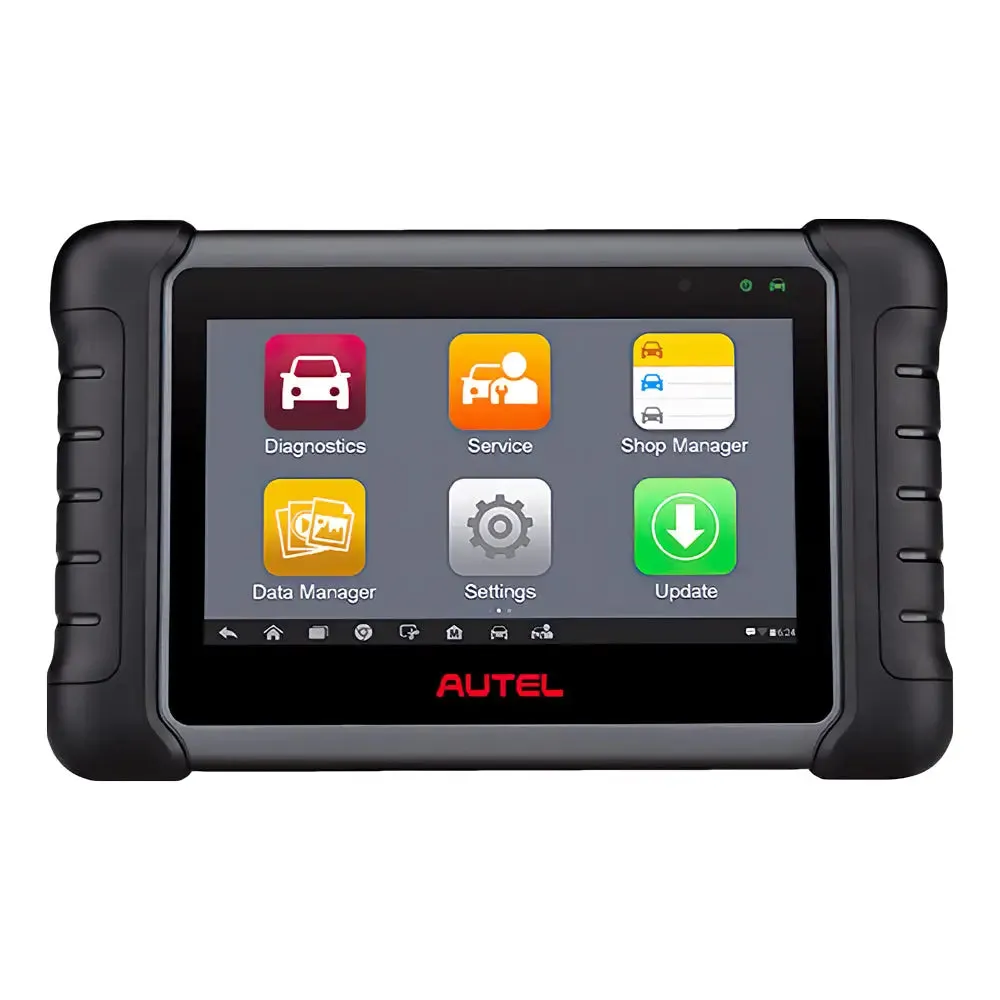

Upgrade your shop with the Autel MaxiCHECK MX808, a cutting-edge service and diagnostic scan tool. This versatile 7-inch touchscreen tablet, powered by a 1.5GHz quad-core processor, runs on Android 4.4.4. Equipped with a 32G hard drive and Autel MaxiSYS system suite software, it seamlessly accesses all available modules in various systems, performing AutoSCAN and AutoVIN (2006 ). With 17 service functions, including ABS brake bleed, live data recording, and printable diagnostic reports, this tool is your go-to for comprehensive vehicle diagnostics. Easily updatable via Wi-Fi, it includes a 1-year tool warranty and 1 year of free software updates, making it a must-have for professionals seeking top-notch performance in their shop.
Features:
- AutoVIN 2006 : All modules, all systems for precise diagnostics.
- 17 Service Functions: Covers ABS brake bleed, emissions testing, more.
- Global Coverage: Handles Domestic, Asian, European vehicles (1996 ).
- 7” Touchscreen: Responsive interface for user-friendly operation.
- Powerful Performance: 1.5GHz Quad-Core, 32GB Memory, 2GB RAM.
- Wi-Fi Updates: Stay current with easy, wireless software updates.
- Diesel Solutions: Reset emissions, perform DPF regeneration on select vehicles.
- Smart Maintenance: Set Inspection 1&2 service intervals with ease.
- OBDII Compatibility: Supports protocols and all 10 test modes.
- Enhanced Diagnostics: Utilize Mode 6 for advanced problem-solving.
- Live Data Handling: View, record, playback live and freeze frame data.
- TPMS Support: Relearn sensor ID efficiently with activation tool.
- MaxiSYS Suite: Shop Manager applications for comprehensive management.
- Warranty & Updates: 1-year warranty, 1 year of free updates.
- Extended Coverage: Eligible for Extended TCP coverage for added assurance.
- Cord Included: Comes with OBDII cord for immediate use.
- Long Battery Life: 5,000 mAh battery ensures prolonged functionality.
- Integrated Camera: 8MP camera with LED light for visual documentation.
- File Flexibility: Save files with a Micro SD Card (32G max., not included).
Specs:
Recommended Use: IndoorOperating System: Android 4.4.4, KitKat
Processor: Cortex-A9 processor(1.5 GHz)
Memory: 64GB
Display: 7-inch LCD capacitive touchscreen with 1024×600 resolution
Connectivity
- Mini USB 2.0
- USB2.0
- Wi-Fi
- HDMI Type A
- Micro SD card slot(supports up to 32GB)
Sensors: Light sensor for brightness auto-adjust
Audio Output: buzzer
Power and Battery
- 3.7 V/5000 mAh lithium-polymer battery
- Charges via 5 VDC power supply
Tested Battery Life: Around 7 hours of continuous use
Battery Charging Input: 5V/1.5A
Power Consumption: 600 mA(LCD on with default brightness,Wi-Fi on)@3.7 V
Operating Temp: -10to60°C(14to140°F)
Storage Temp: -20to70°C(-4to158°F)
Operating Humidity: 5%-95%non-condensing
Dimensions(WXHXD): 270.8mm(10.0)X176.0mm(6.9)x36.0mm(1.4)
Net Weight: 885g(2.31|b.)
Protocols: ISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code, SAE-J1850 VPW,SAE-J1850PWM, ISo11898(Highspeed,Middlespeed,Lowspeed and Singlewire CAN,fault-tolerant CAN) SAE J2610,GM UART UART Echo Byte Protocol Honda Diag-H Protocol,TP2.0,TP1.6
