Klimaire Fit Pro Central Ducted systems are DC Inverter

Side-discharge small footprint condensing unit and an air handling unit. This product offers and takes customer and contractor concerns into account. Our quite operating compact outdoor unit can be installed on a wall bracket, under a deck or on a balcony, or even stacked to provide comfort for larger living spaces.

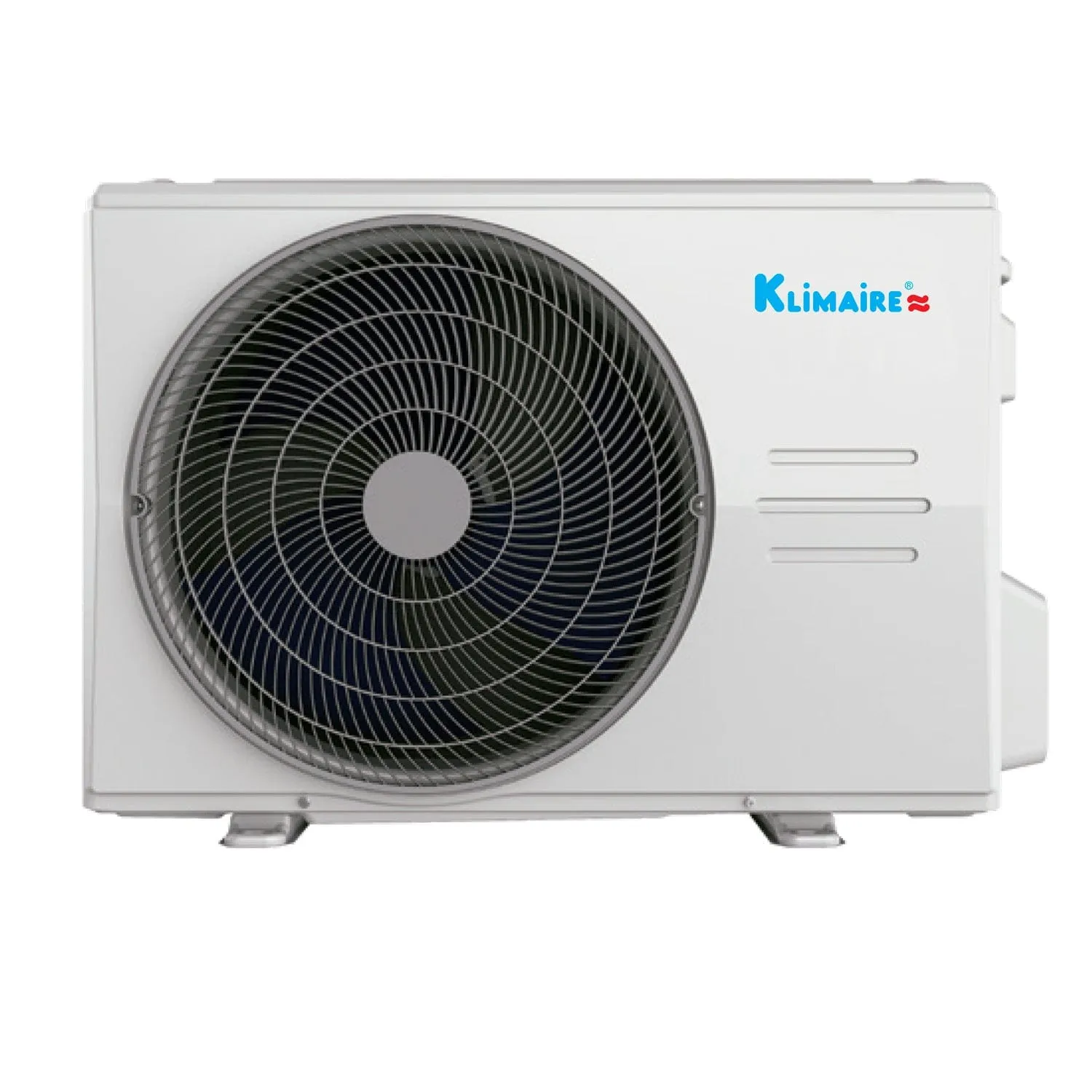

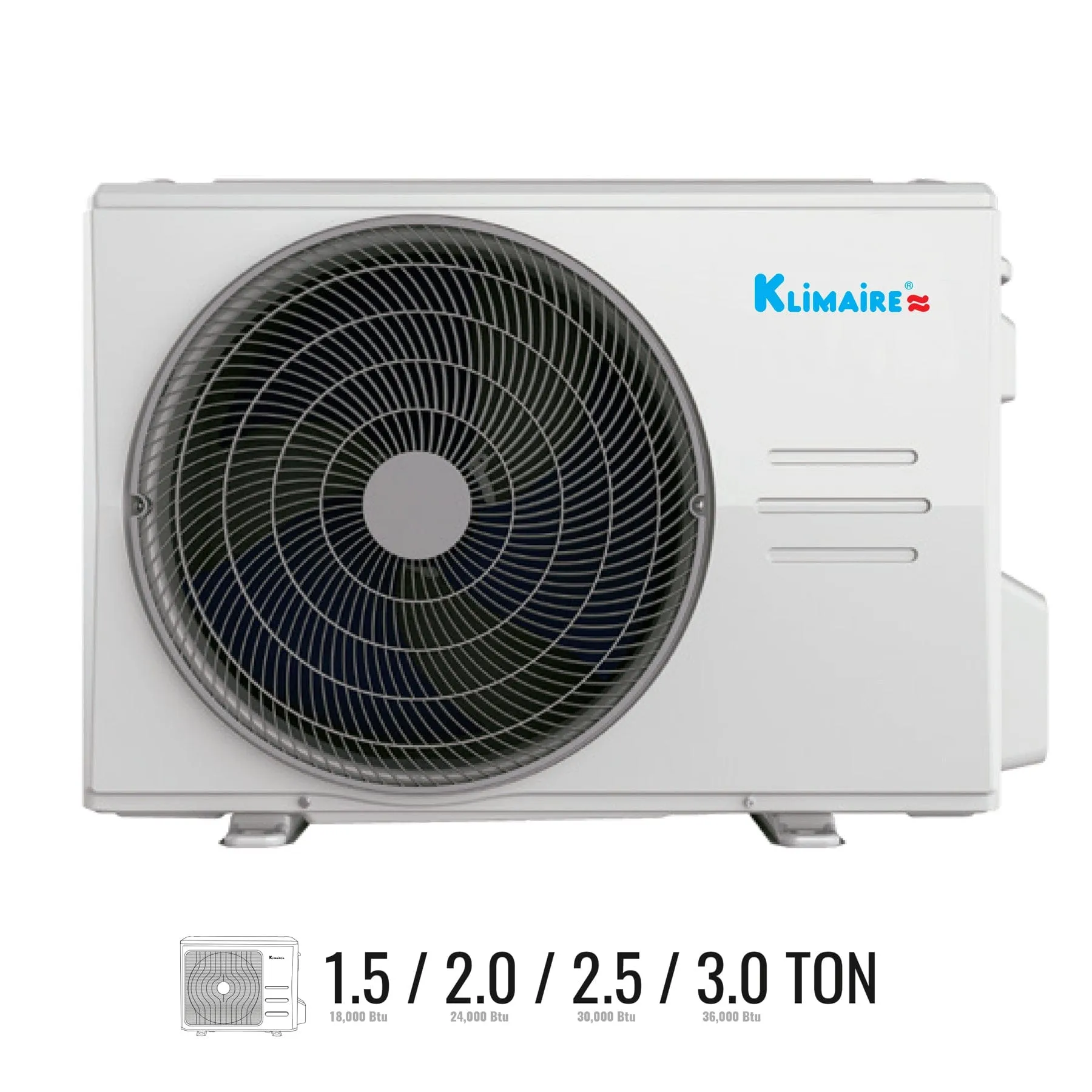

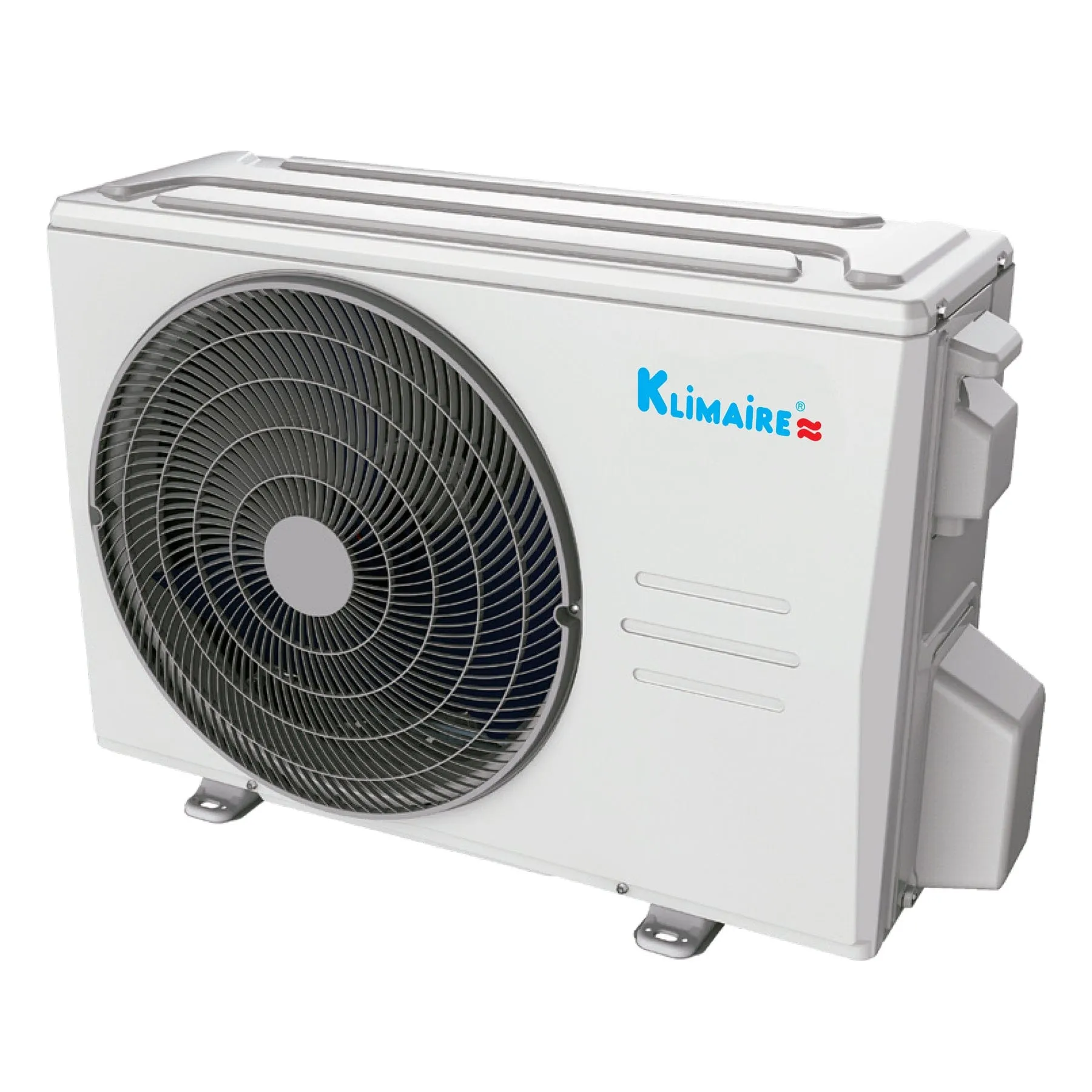

KOIF24H2-1S | Outdoor Heat Pump Unit

The nominal Unit capacity is 24,000 BTU/h or a 2-ton. Its capacity ranges between 6,400~27,000 BTU/h in cooling and 10,100~31,000 in heating modes. Smart Inverter, by adjusting the compressor capacity reduces operating costs, allows for quicker, smoother, and more efficient heating and cooling.

Standard Features

• Gold fin copper coil: helps to fight against corrosion in salty and harsh environments.
• Drain pan heater: prevents ice accumulation for low ambient operations to improve heat transfer.
• Can be matched with any standard air handler or a coil controlled by 24V heat pump thermostat.
• Smart dusting function: Reverses the fan operation to clean dust, sand, other debris from the coil.
• Low ambient heating and cooling.
• Can be combined with standard air handler or a coil.
• Self-Diagnostic.

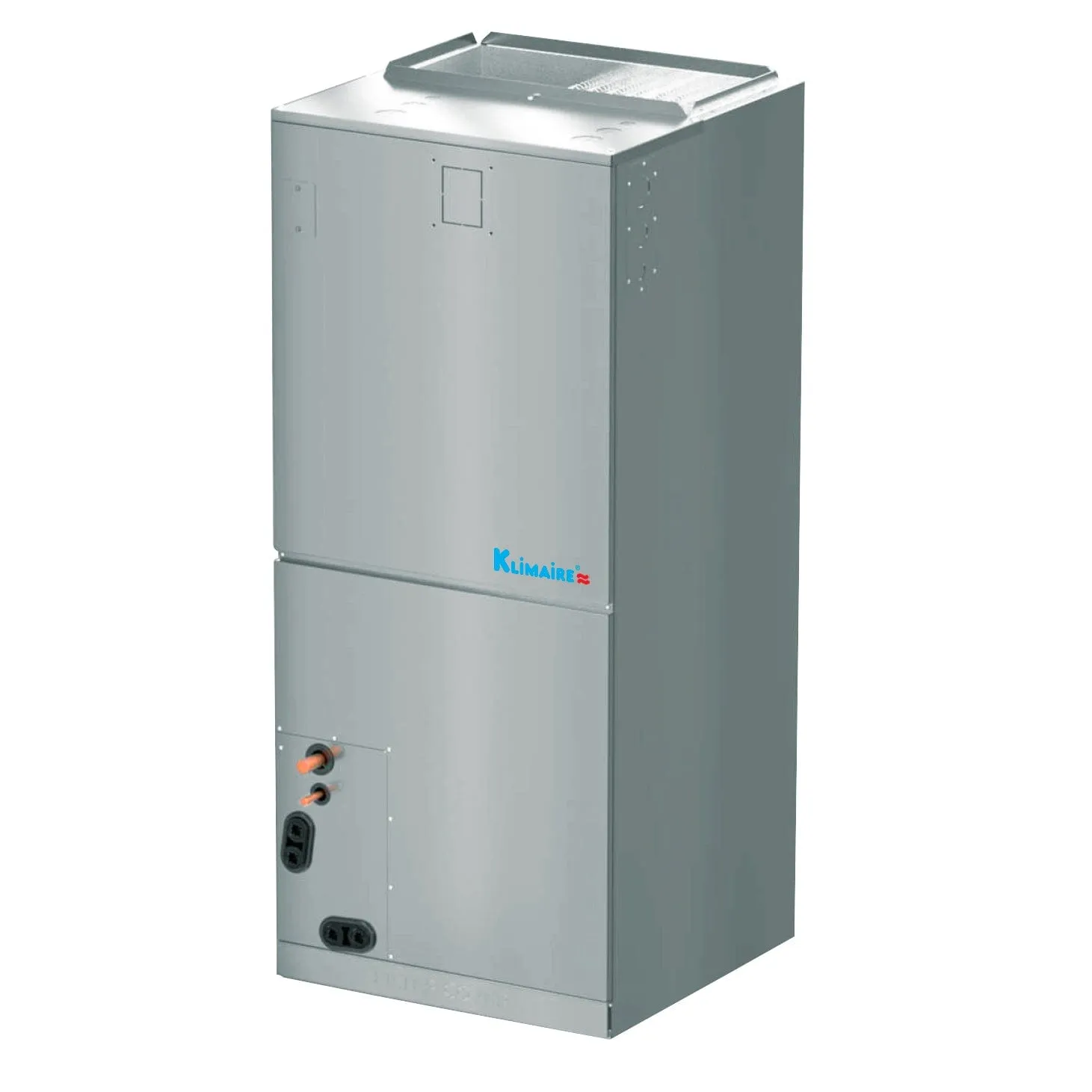

KIDF24H2-1S | Indoor Unit

Well insulated galvanized durable cabinet has less than 2% air leakage. It is equipped with a noncorrosive composite drain pan. Packed with a wired control thermostat provides a Wi-Fi connection with many comfort and convenient functions.

Improved Performance (Btu/h/W)

SEER2: 17.4 | HSPF2: 10 | HSPF5: 8 | EER2: 11.7

Standard Features

• Multi position compatible with up flow /horizontal (left/right) configuration.
• Optional auxiliary electric heater kit options.
• High static performance with self-adjusting ECM motor 0-0.8 In. wg.
• Filter rack.
• Error code display functionality.
• Aluminum coil for longer life and better heat transfer.
• IAQ equipment (UV light and humidifier) dedicated wiring port.
• Included wired and wireless controls for maximum control and comfort
• Factory installed access valve for easy maintenance.
• Braze or Flare connection possible with factory provided kit when soldering is not possible.

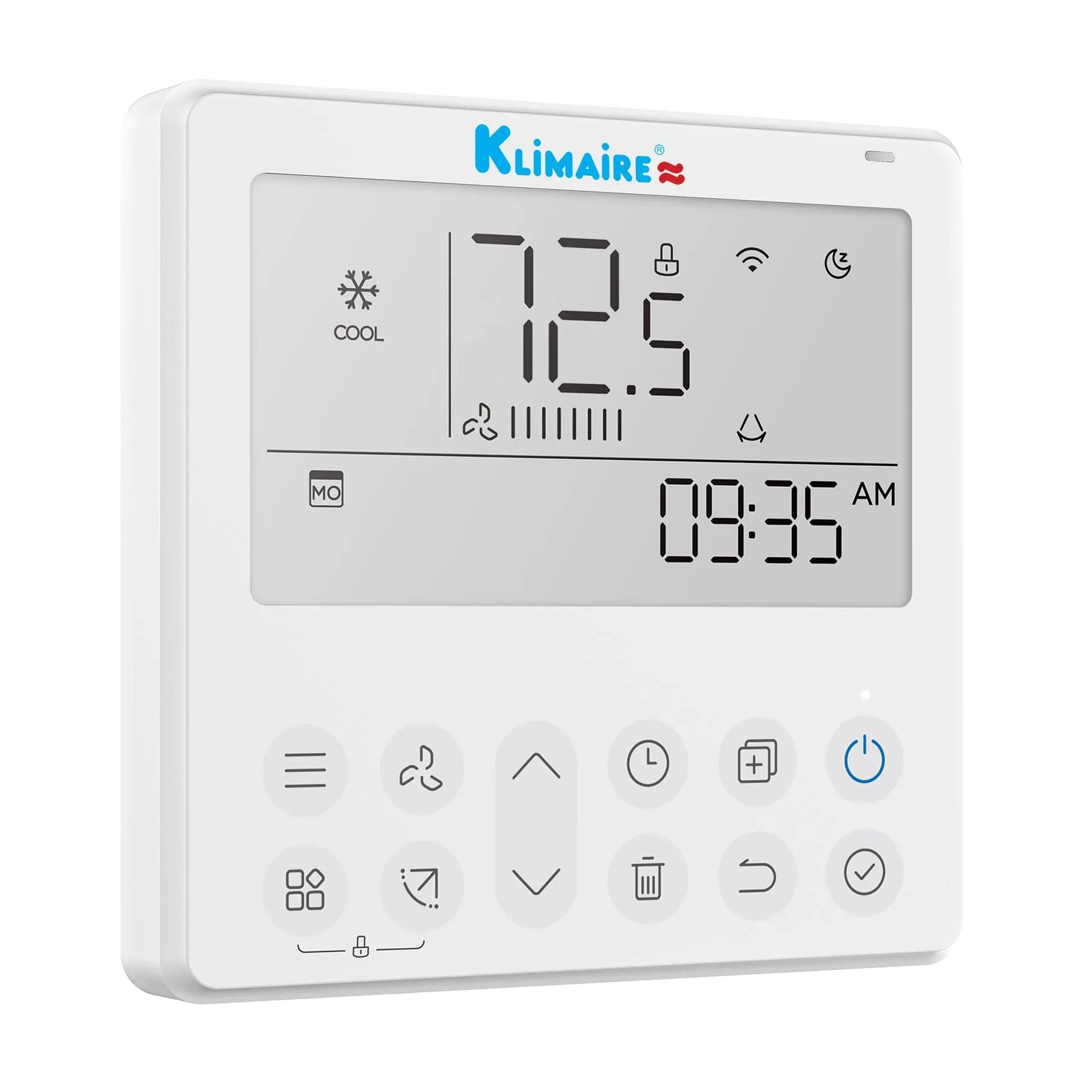

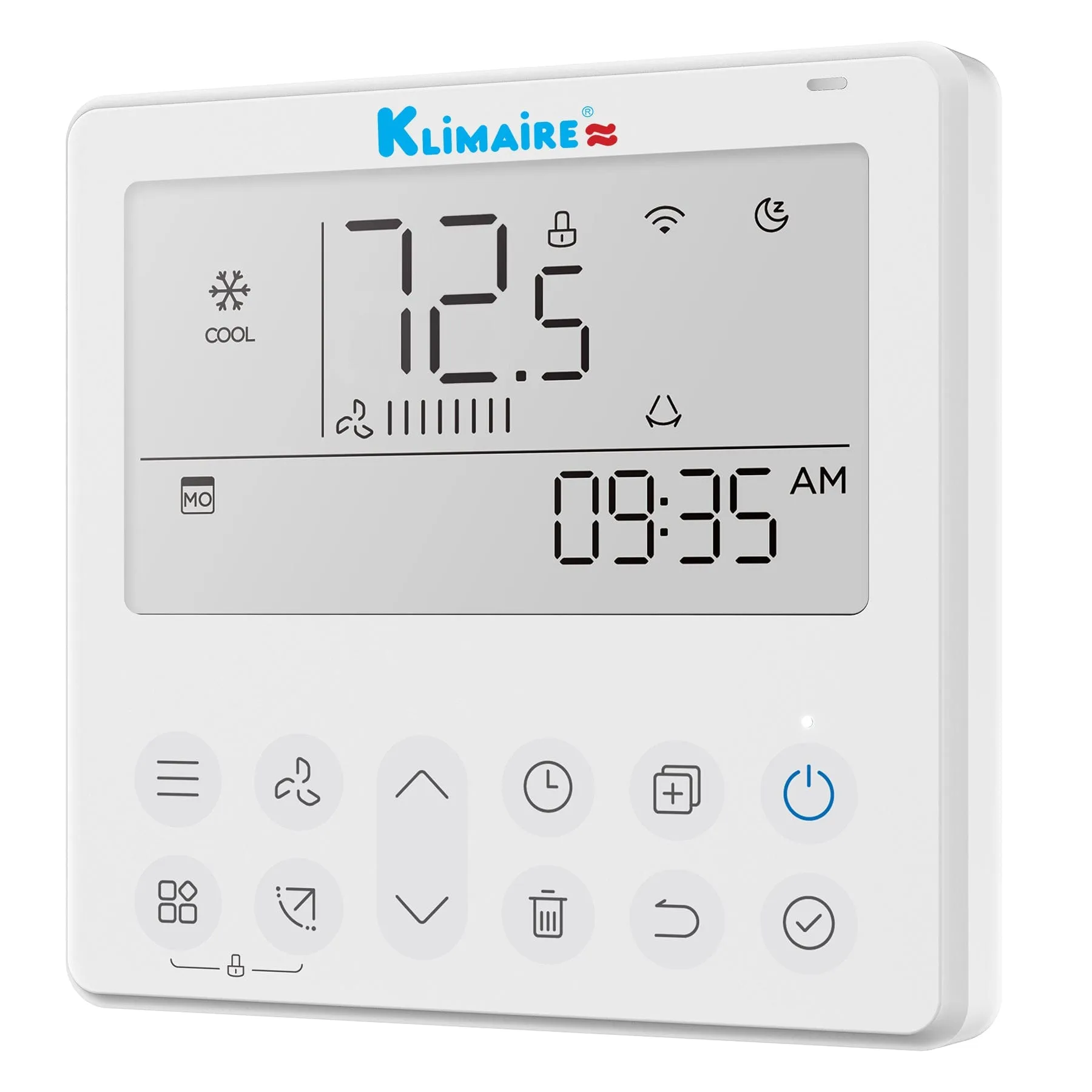

Wired Remote Control

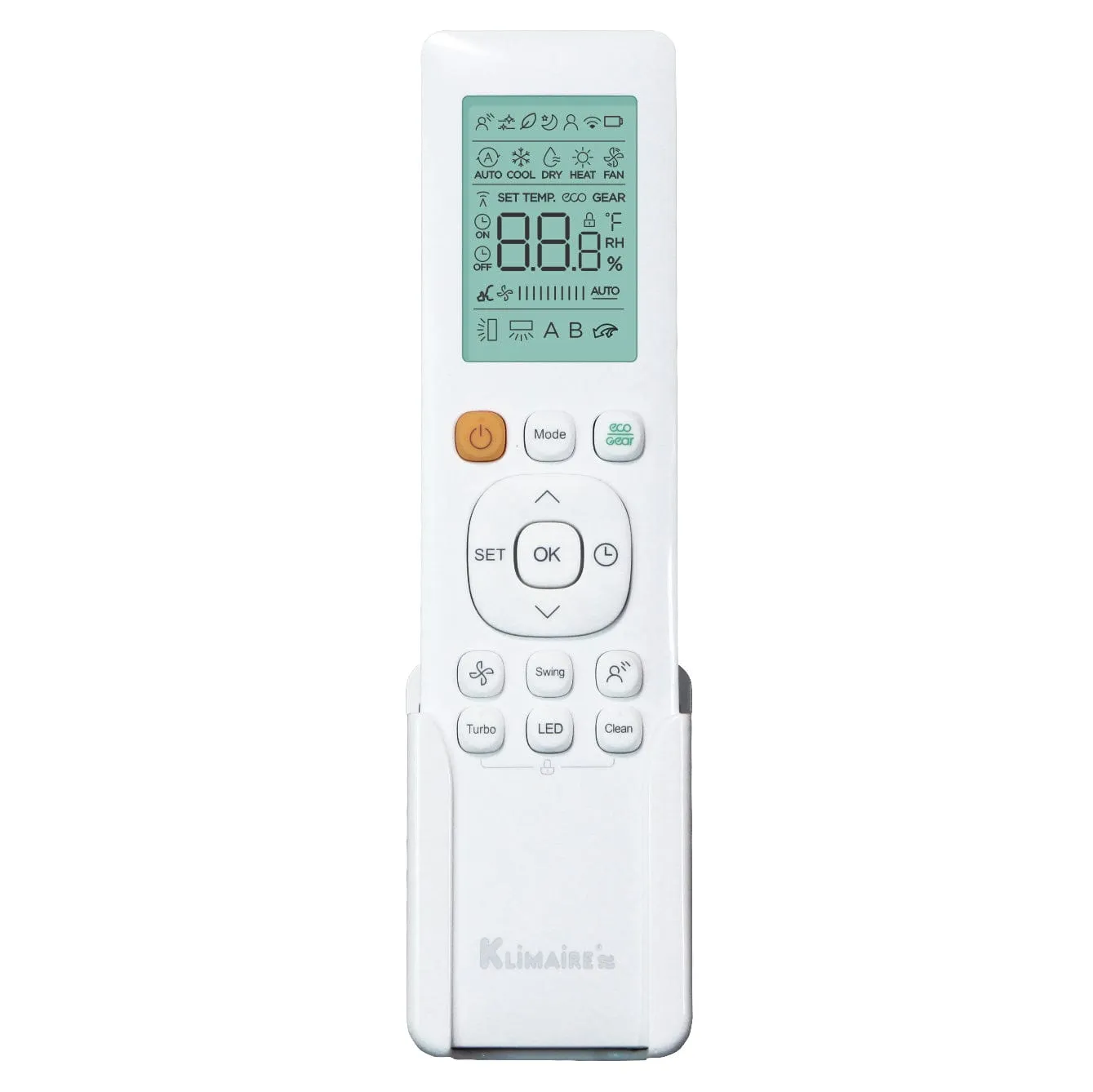

Wireless Remote Control

Remotely managed

WHAT’S INCLUDED

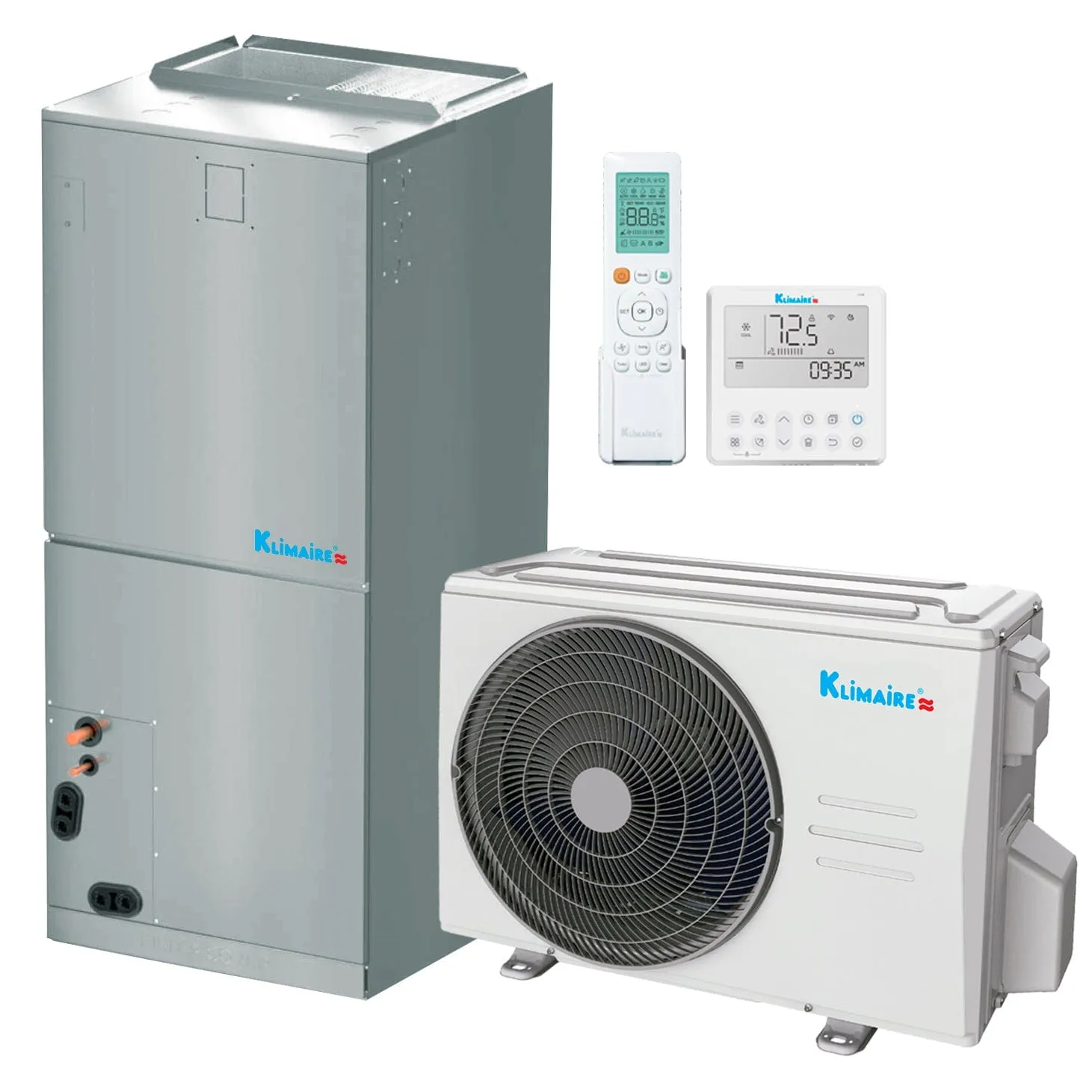

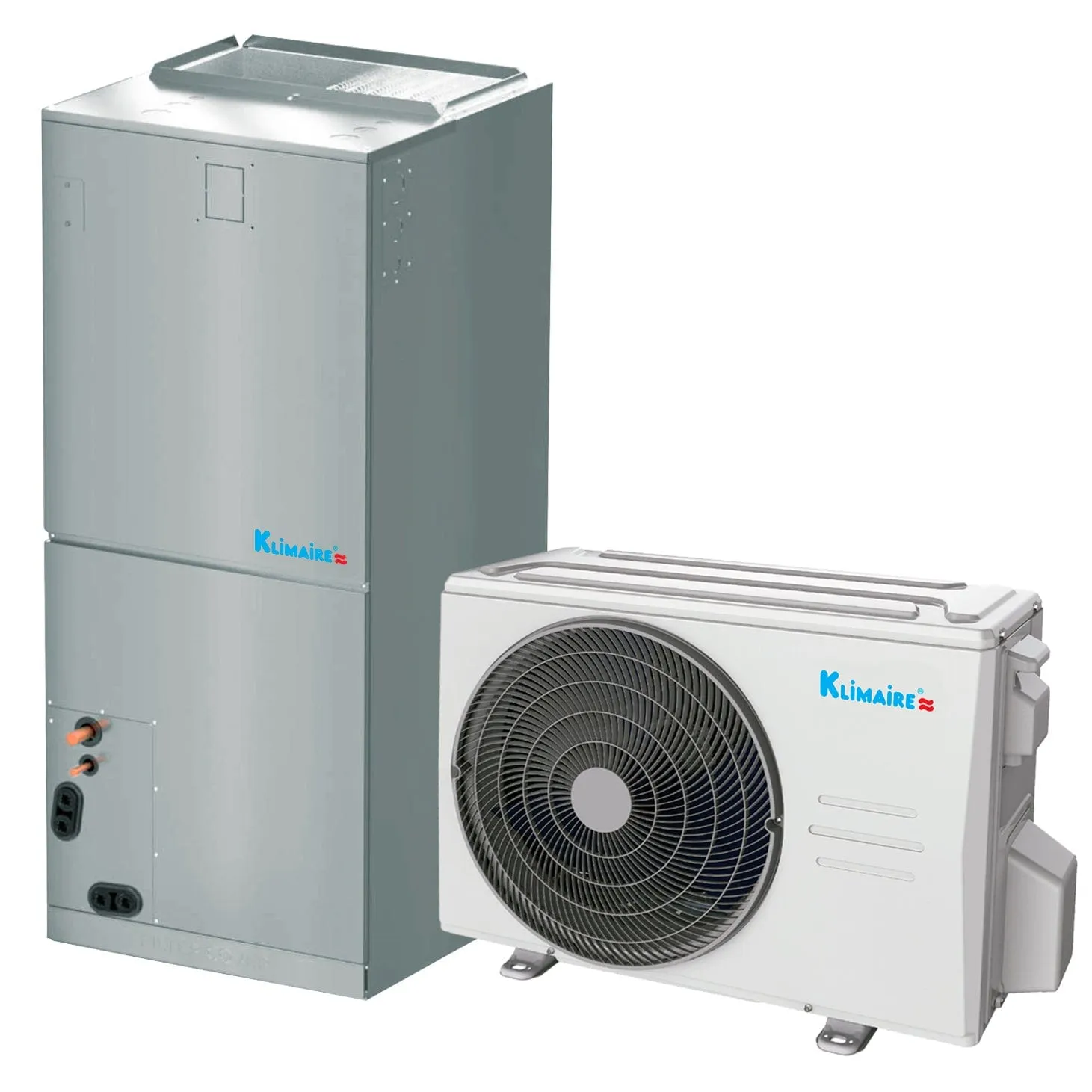

Your Klimaire Central Air Conditioner Heat Pump System Heat & Cool Comes With:

• KOIF24H2-1S | Outdoor Unit
• KIDF24H2-1S | Indoor Unit
• Wireless Remote Control with wall bracket holder

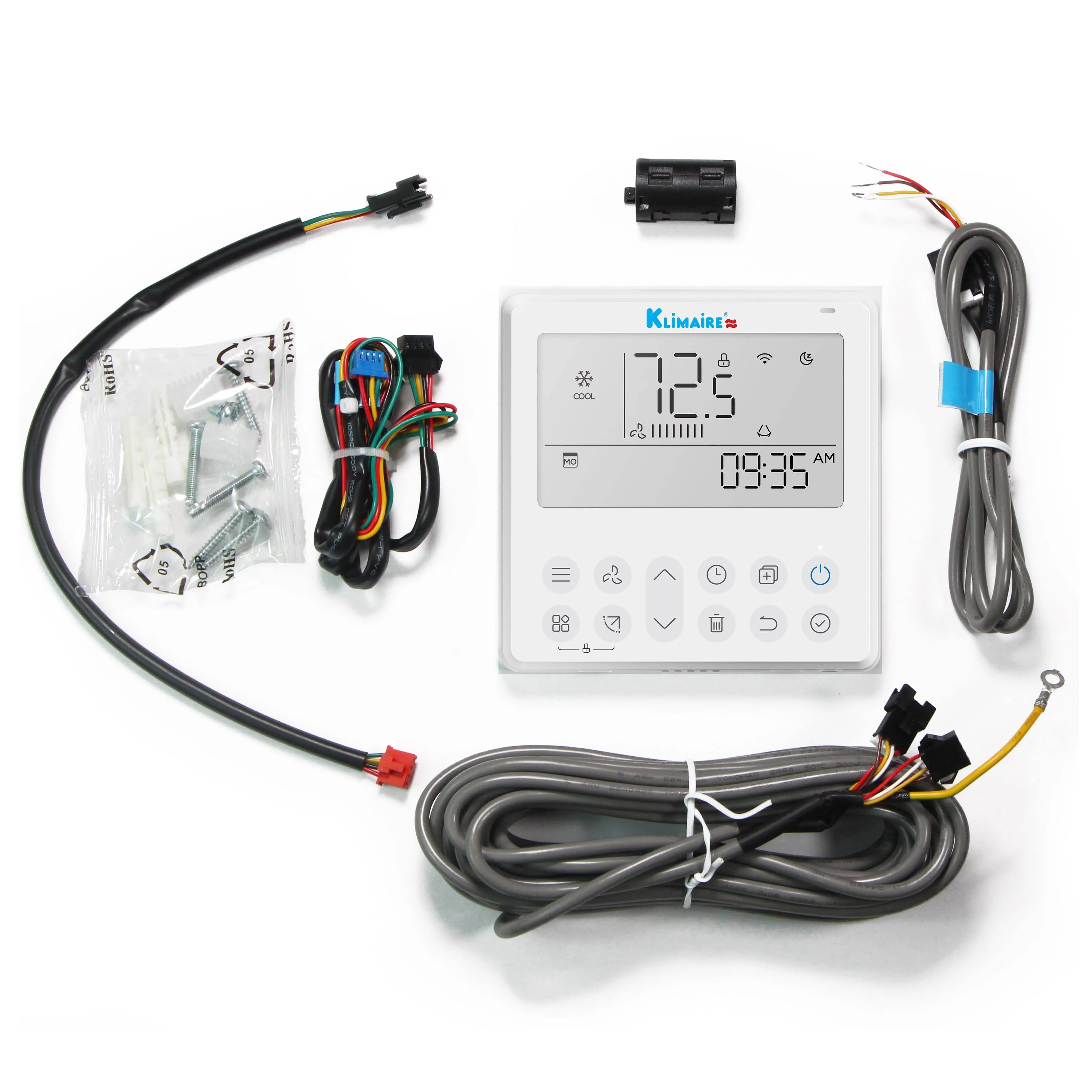

• Wired Remote Thermostat
• Installation manual
• User’s Manual
• Wired and Wireless Controls User’s Manuals
• Manufacturer Warranty

MANUFACTURER WARRANTY

• 5 Year parts warranty
• 7 Year compressor warranty
